1 150 Rotation Electric Motor Speed Reducer Planetary Gearbox Reducer

Product Description

Product Description 1 150 rotation Electric motor speed reducer Planetary Gearbox Reducer

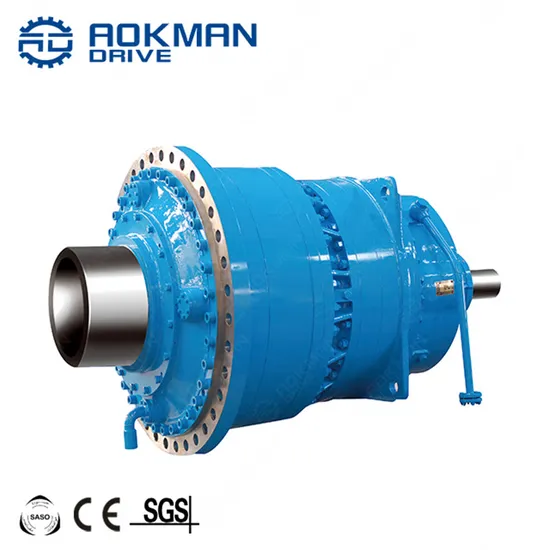

P Series Planetary Gearbox adopts the involute planetary gear transmission with inner mesh, outer mesh and divided power employed reasonably. So the series has the features of light weight, small volume, high transmission ratio, high efficiency, smooth rotation, low noise and good applicability.
Application:
P Series Planetary Gearbox is widely used in many industries such as metallurgy, mining, hoisting and transportation, electrical power, energy resources, construction and building materials, light industry and traffic, etc.
P series planetary gearbox with good prices
1.P Series Planetary Gear Units is designed according to the involute planetary gear transmission with inner mesh,outer mesh and divided power employed reasonably.
2.P series planetary gear unit has the feature of light weight , small volume, high transmission ratio,
high efficiency, smooth rotation, low noise and good applicability.
3.P series is widely used in industries such as metallurgy, mining, hoisting and transportation, electrical power, energy resources, construction and building materials, light industry and traffic.
Detailed Photos
4.Technical Data

Input power	Ratio	Torque	Planetary gear units stage	Mounting type
0.4~9551kW	25~4000	Up to 1920000N.m	2 stage 3 stage	Horizontal Vertical

5.Basic Information
Gear Arrangement:Helical gear
Mounting Type: Horizontal, Vertical
Types: P2N,P2L,P2S,P2K,P3N,P3S,P3K

6.Features

Features of Planetary gearbox	Light weight
	Small volume
	High transmission ratio
	High transmission efficiency
	Smooth rotation
	Good applicability

P series planetary gearbox with good prices

7.Explanation of types
P2N-2-stage planetary gear units:
P2L-Bevel,2-stage planetary gear units:
P2S-Helical,2-stage planetary gear units;
P2K-Bevel-helical,2-stage planetary gear units:
P3N-3-stage planetary gear units;
P3S-Helical,3-stage planetary gear units;
P3K-Bevel-helical,3-stage planetary gear units;

Product Parameters
Product description:

Rated Power	0.4KW~9551KW
Rated Torque	Up to 1920KN.m
Gear Arrangement	Planetary with helical or bevel gearbox
Input Speed	50HZ or 60HZ of 4Pole,6Pole and 8pole motor
Ratio	i=25~4000
Installation Form	Flange Mounted, Foot Mounted or Torque Arm Mounted

Certifications
Packaging & Shipping
Company Profile
Our Advantages

Pre-sale services	1. Select equipment model.
	2.Design and manufacture products according to clients' special requirement.
	3.Train technical personal for clients
Services during selling	1.Pre-check and accept products ahead of delivery.
	2. Help clients to draft solving plans.
After-sale services	1.Assist clients to prepare for the first construction scheme.
	2. Train the first-line operators.
	3.Take initiative to eliminate the trouble rapidly.
	4. Provide technical exchanging.

FAQ 1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
Welcome you contact me if you are interested in our product.
Our team will support any need you might have.

---
