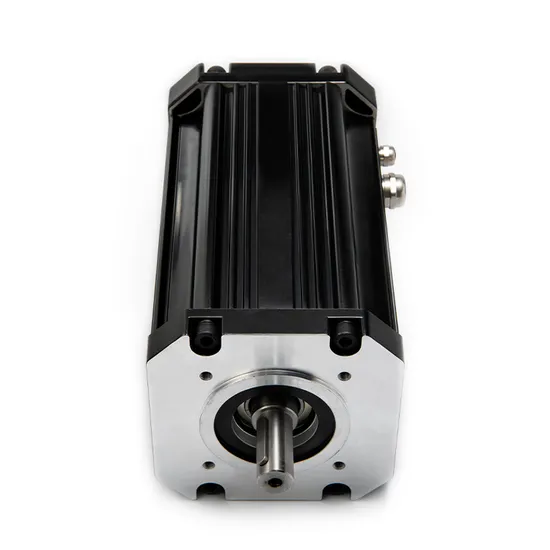

High Precision 50W 100W 150W 200W 300W 400W 24V 48V BLDC Motor

Product Description

High Precision 50W 100W 150W 200W 300W 400W 24V 48V BLDC Motor
General Parameters

Projects	Specifications
Winding Type	Star
Hall Effect Angle	120° electrical angle
Shaft Axial Play	0.025mm
Ambient Temperature	0~+50ºC
Ambient Humidity	<80%
Max. Radial Force	75N@20mm from the flange
Max. Axial Force	20N
Insulation Class	Class B
Dielectric Strength	one minute@500VAC
Insulation Resistance	100MΩMin.@500VDC

Technical Data

Model	Rated voltage VDC	Rated torque N.m	Rated speed rpm	Rated current A	Rated power W	Peak torque N.m	Motor length mm	Weight kg
GSBLD57S50D24	24	0.16	3000	2.8	50	0.48	55	0.46
GSBLD57S100D48	48	0.16	6000	2.8	100	0.48	55	0.46
GSBLD57S100D24	24	0.32	3000	5.6	100	0.96	75	0.75
GSBLD57S200D48	48	0.32	6000	5.6	200	0.96	75	0.75
GSBLD57S150D24	24	0.48	3000	8.4	150	1.44	95	1.00
GSBLD57S300D48	48	0.48	6000	8.4	300	1.44	95	1.00
GSBLD57S200D24	24	0.64	3000	11.2	200	1.92	115	1.20
GSBLD57S400D48	48	0.64	6000	11.2	400	1.92	115	1.20

Dimensional Drawing Unit: mm
Note:
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.
FAQ
1 Q: What's your MOQ?
A: 1unit is ok for different types.
2 Q: What about your warranty?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms ?
A: TT, western union and paypal. 100% payment in advanced for orders less $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing ?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet
6 Q: What information should be given, if I buy from you ?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the order?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
Warmly welcome your inquiries !

---
