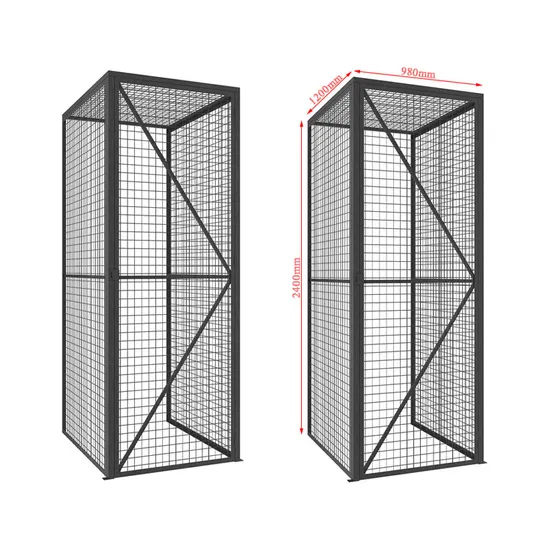

Horizontal and Vertical Wire Mesh Bike Storage Locker with Mesh Ceiling

Product Description

Horizontal and Vertical Wire Mesh Bike Storage locker with Mesh Ceiling
As part of our wire mesh lockers line up, Partitions offers the standard locker option as an ideal storage locker built with the same durability as of all our mesh products, but with an attractive price. Our heavy duty locker made with the same durability as the standard locker but with the added benefit off tubular posts, allowing further flexibility in difficult installations. Panels
Panels shall be 10g wire spot welded into 2'' x 2'' squares (50mm x 50mm x 3.2mm wire) welded into an angle frame of 1 ¼'' x 1 ¼'' x 12 angle ( 32mm x 32mm x 3mm ) welded at every 8'' inches (200mm) . All panels shall be fastened to floor and walls using 1/4'' x 1 1/4'' (6.4mm x 32mm) drive nails. All panels shall be fastened using 1/4'' x 3/4'' (6.4mmx 19mm) zinc bolts and nuts
Swing doors
Swing doors shall be made of the same material and method as panels with an added ½'' rod ( 12.5mm) form center to corners . Doors shall be equipped with padlock lugs, door strikes and 1 1/2 pair of hinges
Ceilings
Shall be 2''x 4''x 1/8'' rectangles (50mm x 100mm) wire framed with 1 1/4''x 1 1/4'' x 12g angle (32mm x 32mm x 3mm ) angle on perimeters and secured with wire loop toes ( option framed tops available)
Finish
Baked grey powder over a phosphate treated steel
1. Are you trader or manufacturer?
Hebei PFT Factory is manufacturer and exporter. There are many years experience in fence panel. Welcome to our factory.
2. How do I customize the panel?
From panel width to panel length, the fence is customizable. Also you can give us your drawing.
3.Are the panel high-quality?
Beginning with the raw material, which is the highest quality, and continuing through professional welding and professional galvanizing by professional engineer. The panel are second to none in look,quality and durability.
4.Is it easy to install?
Yes , of course. Before exporting , we have prepared all parts and we also can supply you manual.
5. Why choose us?
We have many years' experience. And exported many countries,e.g. Australia,England, South Africa,Holland, etc.

---
