French Fries Potato Chips Production Line/ Crisp Potato Wave Chips Making Machine

Product Description

Automatic Wave Potato Chips Shaping Frying Potato Fries Making Machine
Working Flow:
The conventional output is 30kg\h, 50kg\h,70kg\h,80kg\h,100kg/h, 150kg\h,200kg/h, 300kg/h, 500kg/h, 1000kg/h ,1500kg/h and so on.

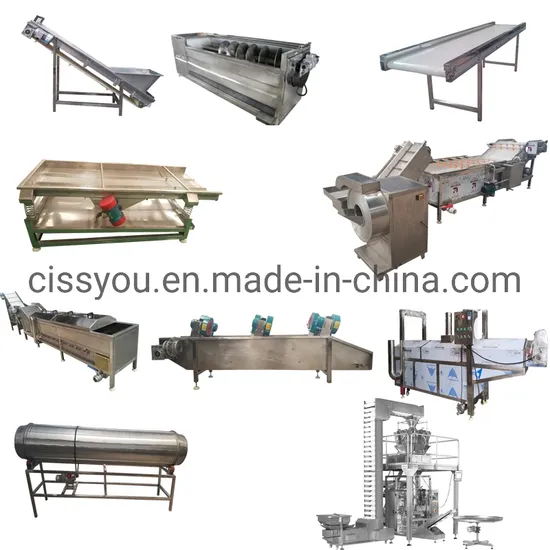

In general, the French fries making machine potato chips production line includes the following equipment:
1.Loading elevator
2.potato washing and peeling machine
3.Sorting conveyor line
4.potato cutting machine
5. potato blanching machine
6.Vibration dewatering machine
7.air-dry dewatering machine
8.french fries potato chips frying machine
9.Vibration deoiling machine
10.air-dry deoiling machine
11.seasoning machine
12.packing machine
Introduction of the potato fries making machine:
The use of dual-network belt conveying food, up and down the network with variable speed adjustment, automatic lifting system, convenient for workers to clean up the body of health, constant temperature continuous production to ensure that the fried food temperature and time consistent, automatic smoke exhaust system, to ensure that workers have a good working environment. Using the oil-water mixing process, the residue in food is automatically sunk into the keep the oil surface clean, heating system for electric heating heat conduction oil indirectly heating the way of cooking oil, accelerate the heating speed of edible oil, reduce the cooking oil in the process of carbonization, ensure the quality of edible oil, prolong the use cycle of frying oil, with energy-saving, environmental protection, Warming up fast, protect the characteristics of fried oil.
Features of the potato fries making machine:
1. Various choices. We supply 150kg/h,300kg/h, 500/h and 1000 kg/h for customers.
2. High efficiency and energy saving. Excellent quality and Low oil consumption.
3. Easy operation and multifunctional usage.
4. Comparative price and high rate of profitable return.
5. All the machines in the production line are made of stainless steel 304
6. Electricity power requirement is 380V/50Hz/three-phase.
7. The cutting machine can cut the potato sticks of thickness 2-10mm, it is adjustable.
8. The packing machine is an automatic one and it can feed, elevate, weigh, and pack the fries at one time.
Parameters of the lays potato fries making machine:

Product Name	Power	Dimension
Lifting Machine	0.55kw/380v/50Hz	1500*800*1600mm
Cleaning and Peeling Machine	4.37kw/380v/50Hz	3100*900*1500mm
Picking Line	0.75kw/380v/50Hz	3500*800*900mm
Potato Chips Cutting Machine	1.5kw/380v/50Hz	950*800*950mm
Rinsing Line	2.95kw/380v/50Hz	3500*1200*1300mm
Blanching Line	60kw/380v/50Hz	4000*1200*1400mm
Cooling Line	15kw/380v/50Hz	4000*1200*1400mm
Elevator	0.75kw/380v/50hz	1500*800*1300mm
Electric Heating Fryer	80kw/380v/50Hz	5000*1200*2400mm
Cooling Line	8kw/380v/50Hz	4000*1200*1600mm
Elevator	0.75kw/380v/50Hz	2000*800*2200mm
Frozen Line	100kw/380/50hz	6000*3300*3000mm
Automatic Ten Mouths Packing Machine	6kw/380v/50hz	3000*3000*2600mm

---
