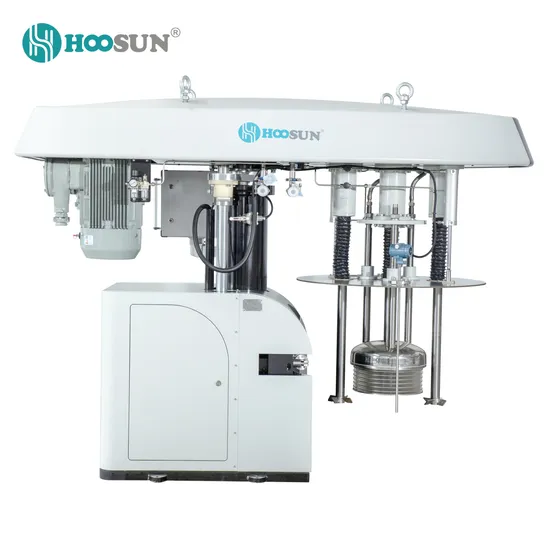

High Quality Dispersion Milling Machine Bead Mill Basket Mill Factory

Product Description

Basic Info.

Model No.	SMB 500	Crushing Style	Extruding and Milling
Principle	Basket MIll	Cutter Material	Zirconium/Aluminium Bead
Finished Surface	Outer Surface Process	Compressive Strength (For Crushing)	>300MPA
Tongs' Features	Adjustable Tongs	Power	Motor
Fineness	30nm-5um	Output	Siemens Screen
Operation	Milling and Separating Independently	Mill Parts	Material Optional
Transport Package	Wooden Case	Trademark	Hoosun
Origin	Shanghai, China	HS Code	8477800000

Product Description
Performance Advantage Effective Mixing and Dispersion: Basket mills are known for their efficient mixing and dispersion capabilities. The design of the basket allows for thorough mixing of materials and effective grinding/dispersing of particles.
Uniform Particle Size Distribution: They can achieve a more uniform particle size distribution compared to disc type bead mills. This is particularly advantageous in applications where consistency and fine control over particle size are critical.
Handling of Viscous Materials: Basket mills can handle higher viscosity materials effectively. The design of the basket and the flow pattern within it allow for efficient processing of viscous formulations.
Ease of Cleaning and Maintenance: Typically, basket mills are easier to clean and maintain compared to disc type bead mills. This can result in reduced downtime and improved productivity.
Versatility: Basket mills can be used for a wide range of applications beyond just grinding and dispersion, such as mixing, emulsifying, and homogenizing.
Covering Industries: Basket mills are particularly well-suited for industries where the advantages listed above are critical:
Paints and Coatings: Used for dispersion of pigments and additives in paint formulations, achieving desired color strength and consistency.
Inks: Used in ink manufacturing for dispersion of pigments and dyes to achieve the required color intensity and print quality.
Pigments: Basket mills are effective in grinding and dispersing pigments to achieve desired color properties and stability.
Adhesives: Used for mixing and dispersing adhesive components to achieve the required viscosity and bonding properties.
Cosmetics: Basket mills can be used in cosmetic formulations for blending and dispersing pigments, ingredients, and additives.
Chemicals: Widely used in the chemical industry for dispersion of various chemicals, achieving homogeneous mixtures and desired particle sizes.
Technical Parameter

Model	Lift (mm)	Weight (kg)	Motor Power (grinding)	Motor Power (stirring)	Batch Capacity
Lab-SMB	/	300	2.2KW	0.75kw	6-10L
SMB 200	800	1100	7.5KW	1.5kw	50 - 200L
SMB 400	900	2200	15KW	4kw	200 - 400L
SMB 500	1300	2800	22KW	7.5kw	300 - 1500L
SMB 3000	1500	3200	37KW	15kw	1500-3000L
SMB 6000	1800	5200	55KW	37kw	2000 - 6000L

Company Profile
Hoosun Workshop
Exhibition
Production Line Projects
CE & ISO certification
Signing Ceremony & After-sales service
Our Customers FAQ
Q1: How do l order?A: Make an inquiry to us →Inform us of the use scenario → Receive our product design recommendation→Discuss details→Confirm sample → Sign contract/deposit→ Mass production →Goods ready -→Balance/delivery →Further cooperation.Q2: What about your warranty?A: First of all, before dellvery, our in-house QC will do a comprehensive inspection to show the condition of the goods by testing operation or trial operation.Secondly, our warranty is 12 months from the time of arrval. If the equipment fail, such as the motor, reducer or inverter is damaged, we will replace and repair it free of charge. In case of damage caused by operational error, we will provide technical guidance to customers.Q3: How about your after-sales service? What should I do if something goes wrong during use?A: Whether it is under warranty or not , we will first help you figure out the essence and solve the problem through video conferencing. lf it is under warranty, no doubt we will take care of the problem and provide a new replacement free of charge. If it exceeds the warranty period, we will replace it for you with it cost price, find the most favorable mode of transportation, thereby solving the problem, maximizing your cost savings at the sametime, and provide lifelong maintenance advice and technical guidance.Q4: What are your company's strengths? Because l see that most of the products look very similar.A: Yes , you're right. Similarity of appearance is a problem.In this matter,we mainly do two aspects of work: firt, to ensure the quality of products; in the other hand, improve the professional quality of sales representatives, improve their communication skills, and provide customers with more additional value beyond the product.
Q5: How can l trust you? After all, this is our first cooperation, but I must give you the money before you ship the goods.A: Yes, it's really not easy to choose a reliable supplier among so many suppliers.Because you may have to consider many factors, such as quality safety, price, delivery after-sales service and so on. But don't worry, our company has more than 12 years of experience in this field and we have taken all the factors into consideration for you.
The only thing you need to think about is how to continue to grow in your market, and we'll do the rest.Q6: Can it be customized?A: Yes, the equipment can be customized according to customers' requirements.

---
