Basic Info.
Hose Coupling Type
Hose Coupling
Weaving Type
Plain Weaving
Hose Coupling Structure
Screw
Transport Package
1roll/CTN, Brown Carton
Specification
ISO, CE, MSDS, CNAL certificate
Production Capacity
1000 Rolls / Month
Product Description

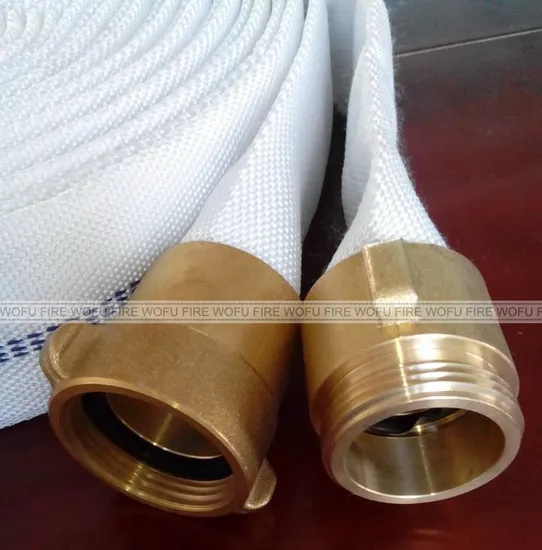

14bar Double Jacket EPDM Fire hose
The EPDM rubber fire hose is lined with EPDM(ethylene propylene diene monomer(M-class) rubber),a type of synthetic rubber.The main properties of EPDM are its outstanding heat,ozone and weather resistance.The resistance to polar substances and steam are also good.The maximum service temperature is 100-120ºC,while,the minimum service temperature is -54ºC.
Double Jacket
Workingpressure:14bar /200Psi
Size:1-1/2"
Length: 15Meters
Brass Coupling : NST 2.5"
Material: EPDM Linner
Construction :
Polyester outet +Polyester inner +EPDM
Color: White,Red,Yellow,Blue,Green,Orange,Black,Purple and Silver,custom's special requested
Length :15M, 20M, 25M, 30M
Coupling avaible: Brass, aluiminium BS, USA type coupling
Feature:
1.Long service life
2.Special corrosion resistance
3.Aging resistance
4.Resistance to high pressure
5.Excellent resistance to sea water,UV and ozone
6.Suitable also for hot water
7.Abrasion resistantance
8. Higher Working pressure
Application:
1.Commercial construction and engineering
2.Mining
3.Fire fighting
4.Liquid transportation
5.Industrial and municipal fire brigades
6.Farming
7.Construction Pumps
8. Ships and factories
Packing information: 15Meter ROll QTY:2Set/carton
Ctn Size :41*40*18.5CM N.W :10.5KG G.W:11KG CBM0.030
Price list:(note the price maybe changed by negotiated)
| ORDER QTY | UNIT PRICE(FOB NINGBO) |
| 50 | USD25 |
| 100 | USD23 |
| 200 | USD22.8 |
| 500 | USD20.6 |
Packing information: 30Meter ROll QTY:2Set/carton
Ctn Size:56*56*18CM N.W :20KG G.W:21KG CBM0.030
Price list:(note the price maybe changed by negotiated)
| ORDER QTY | UNIT PRICE(FOB NINGBO) |
| 50 | USD45.5 |
| 100 | USD44 |
| 200 | USD43.2 |
EPDM hose
Construction:
Single jacket or double jacket,the waft is polyester silk,the warp could be polyester yarn or polyester silk.As for the weaving two options are available:plain and twill.liner:EPDM
Standard length:
It is upon customer's request,the standard length are 15m,20m,25m,30m,40mCouplings available:
National standard,German standard,American standard,Japanese standard&British standard couplings can also be provided.
Characteristics
Its inner lining is the finished cure EPDM hose with non-osmotic.Between the lining and out jacket is the special solid or liquid adhesive,so the adhesion strength is very high.EPDM fire hose has good oil resistance,acid,alkali,aging and ozone proof,anti-ultraviolet and corrosion.Commonly used for fire prevention place and high temperature liquid transportation of petroleum or chemical products in developed countries.
Technical Reqirement
|
Size(Inch/mm)
| Working pressure(Bar/Psi)
| Burst pressure(Bar/Psi)
|
1"
| 25
| 10/150,14/200,17/250,21/300
| 30/450,42/600,51/750,63/900
|
1-1/2"
| 38
| 10/150,14/200,17/250,21/300
| 30/450,42/600,51/750,63/900
|
1-3/4"
| 45
| 10/150,14/200,17/250
| 30/450,42/600,51/750
|
2"
| 52
| 10/150,14/200,17/250
| 30/450,42/600,51/750
|
2-1/2"
| 65
| 10/150,14/200,17/250
| 30/450,42/600,51/750
|
3"
| 75
| 10/150,14/200
| 30/450,42/600
|
>>
