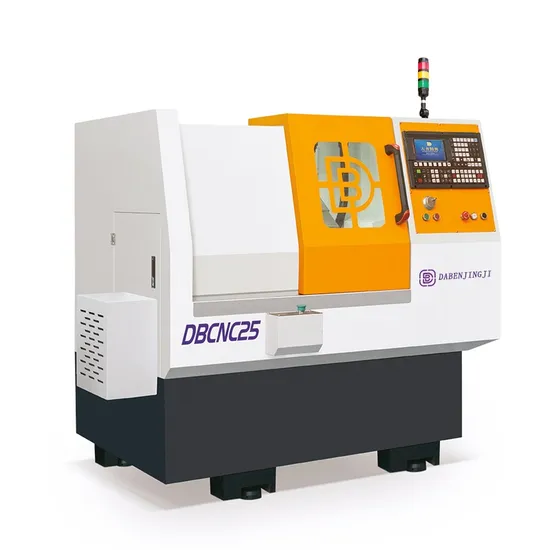

35-Degree Slant Bed Design for Easy Access and Smooth Chip Removal on dB-6125 Type Turret CNC Lathe Center

Product Description

Model characteristics
1.The T-shaped tool changer reduces tool change time, improving production efficiency and versatility.
2.The 35-degree slant bed design allows for easy loading and unloading of workpieces and ensures smooth chip evacuation.
3.An extra-large X-axis with a 520mm travel and Z-axis with a 220mm travel facilitate tool arrangement and allow for turret and powered head installations.
4.Upgraded simple lathe-mill compound offers multiple selections, including the option to install a flying cutter disc, enabling 4-axis coordinated movement.
5.The integrated cast-formed bed ensures machine stability and precision after assembly, housing an independent spindle unit.
6.Optional installations include: side/end power heads, side 2/3/4 with Y-axis power heads, 2+2/3+3/4+4 with Y-axis power heads.
7.Prominent features include high rigidity, quick tool changes, high cost-effectiveness in processing, with oversized chip evacuation design both in the front and rear.

Standard configuration
- New generation system
- NSK bearings from Japan
- Overall cast iron bed
- Taiwan Shangyin/Yintai ball screws
- Taiwan Shangyin/Yintai guides
- Taiwan Jiancheng/Taiwan Pusen spindle
For more information, please contact Dongguan Daben Intelligent Equipment Co., Ltd.
Technical parameters

Model	DBCNC25
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-4
	Spindle bore	mm	36
	Bar diameter	mm	25
	Chuck/collet size	/	5 "/25 type collet
Machine range	Maximum slewing diameter	mm	300
	Maximum turning diameter	mm	200
	Maximum processing length	mm	200
	Tool holder plate and spindle center height	mm	50
Mechanical capacity	Maximum spindle speed	rpm	4500
	Maximum X/Z speed	m/min	30/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	520
	Z-axis travel	mm	220
Turret	Turret model	/	63 center height
	Number of tool positions	T	8T/10T/12T
Motor power	Spindle servo motor	KW(HP)	3.7
	X/Z/Y axial servo motor	KW(HP)	1
	Servo motors for milling axes	KW(HP)	0.25
Other than	Height of spindle from ground center	mm	950
	Total machine power	KW	About 5.0
	Machine external dimensions (L*W*H)	mm	About 1500*1000*1600
	Overall weight	KG	About 1300

Detailed Photos
Explore our Cost-Effective Ck-6125 Type Slant Bed Turret CNC Lathe with Short Tool Changing Time. Ideal for metal processing, this high precision CNC lathe offers online support and a 1-year warranty.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures

common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.

---
