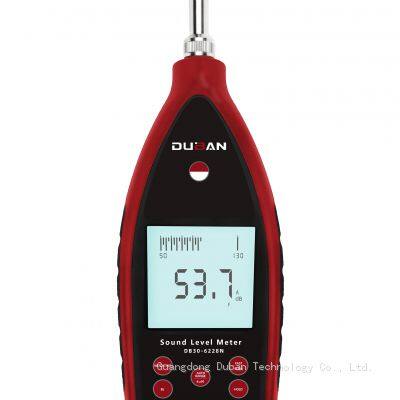

The precision sound level meter is a universal sound level meter that measures the exponential time
weighted sound level. Its performance is in accordance with GB/T 3785-2010 standard level 1 And IEC 61672:
2013 Class 1 sound level meter requirements. It also meets the JJG 188-2017 standard.
* The two time weighting F and S can be selected.
* The digital detection technology is used to replace some traditional sound level meters, the stability
and reliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
Microphone
| Φ12.7mm (1/2') test condenser microphone |
Frequency weighting
| A, C, and Lin(Linear)
|
| Frequency range | 10Hz-20kHz |
Testing Range
| 30dB~90dB (dynamic scale display 10~100)
|
50dB~110dB (dynamic scale display 30~120)
|
70dB~130dB (dynamic scale display 50~140)
|
Accuracy
| In accordance with IEC61672 standard, class 1
|
Time Weighting
| Fast (F), Slow (S)
|
Display
| Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
|
Calibration
| Use class 1 sound level calibrator
|
Power Supply
| 4x1.5V AAA Size (UM-4) Battery
|
| External Power | 5V |
Weight
| 360g (Not Including Batteries)
|
Dimensions
| 270mmx90mmx32 mm
|
Operating Condition
| Temperature： -10°C~50°CHumidity ：20%RH-90%RH
|
Standard Accessories
| Main Unit
|
Windscreen
|
Carrying Case (B04)
|
Manual
|
Optional Accessories
| External power supply (5V)
|
|
|
|
|
|
