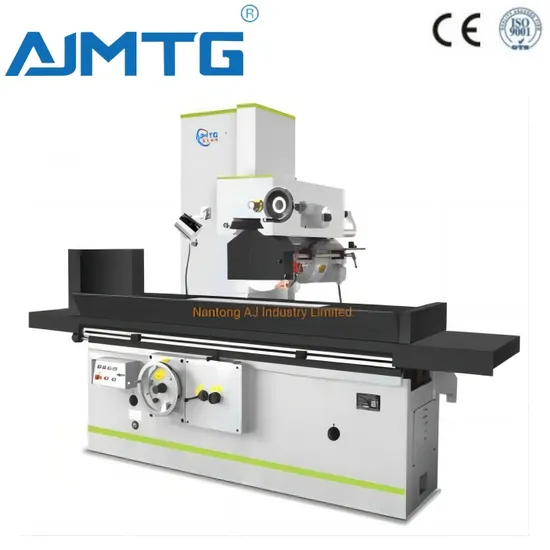

Heavy Duty Surface Grinding Machine M7150X1500/1600

Product Description

Advantages& speciality:
Advantages:
Automatic with compact structure and easy to operate
Mainly surface grinding by use of the wheel periphery, but also by the wheel end surfaces to grind the vertical surface of the workpieces.
Workpieces can be placed on the magnetic chuck or fixed directly on the bench or with other fixtures according to various of workpieces.
Imported hydraulic valve cabinet, best configuration in China of exporting many to Germany. WorkingPrinciple: Hydraulic transmission on longitudinal,light and flexible.
Hydraulic transmission on traversal ,light and flexible also can by manual, convenient to use.
Vertical rapid movement motorized, also can be by manual.
Specification:

Specification:		Unit	M7150*1250	M7150*1600	M7150*2000
Workable size (W×L)		mm	500*1250	500*1600	500*2000
Max longitudinal travel		mm	1350	1700	2100
Spindle center to table surface		mm	800	800	800
Cross travel		mm	580	580	580
Vertical travel		mm	600	600	600
Vertical feed	Per graduation	mm	0.01	0.01	0.01
	Per revolution	mm	1.00	1.00	1.00
Fast elevating	Power	KW	0.37	0.37	0.37
	Speed	r/min	1440	1440	1440
Wheel size		mm	400*127*40	400*127*40	400*127*40
Wheel speed		r/min	1440	1440	1440
Motor power		KW	12	14	14
Wheel spindle motor		KW	7.5	7.5	7.5
Oil pump motor		KW	4	5.5	5.5
Work accurancy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Machine weight		KG	6000	6500	7000
Machine size		mm	3800*2700*2800	4200*2700*2800	4600*2700*2800
