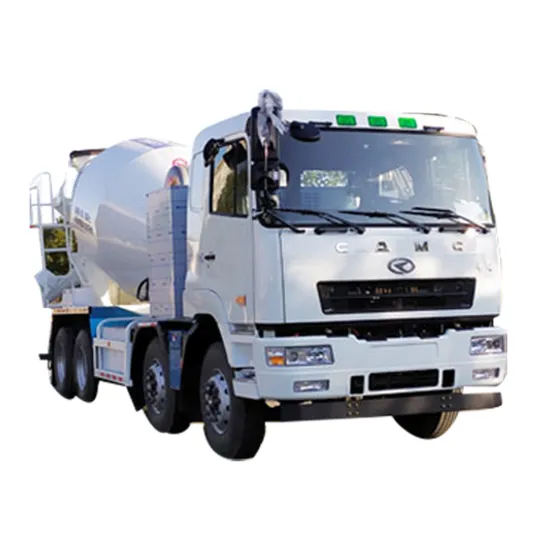

Professionaenvironmentally Conscious Camc 8X4 Electric Truck Mixing Truck Cement for Construction Sites Urban Construction Road Construction Bridge Construction

Product Description

Cement mixer trucks are indispensable heavy transport vehicles in the construction industry, specifically designed for the transportation and storage of cement concrete. They are widely used in construction sites, road construction, and large-scale infrastructure projects to ensure the quality and continuity of concrete supply. The body of such vehicles is made of high-strength steel to withstand heavy loads and vibrations, while the core component-the mixing drum-is made of wear-resistant materials with internal spiral blades to keep the concrete uniform and fresh during transportation. The drive system of the mixing drum is connected to the vehicle's engine to provide the necessary power, and advanced control systems ensure precise regulation of mixing speed and transportation temperature. Safety features such as anti-tipping and anti-slip devices are also important considerations in the design of cement mixer trucks to ensure the safety of personnel. With technological advancements, future cement mixer trucks will become more intelligent and automated, further enhancing construction efficiency and safety.

Overall dimensions	10300×2525×3960(mm)	Rated load capacity	14570(Kg)
Gross Vehicle Weight	31000(Kg)	ABS	standard configuration
Curb weight(kg)	16300(Kg)	Front/rear suspension	1370/2630(mm)
Approach/departure angle	20/12(°)	Front and rear Axle Load	6500/6500/18000(Tandem axle)
Wheelbase	1850+3100+1350, 1850+3500+1350, 1850+3200+1350(mm)	Number of axles	4
Maximum speed	85(km/h)	Number of spring pieces	11/11/14,9/9/12,4/4/5,3/3/4, 11/11/14,9/9/12,4/4/5,3/3/4,7/7/12,7/7/9
Number of tires	12	Tire Size	11.00R20 18PR,12.00R20 18PR, 12R22.5 18PR
Front track	2065/2065(mm)	Rear track	1860/1860(mm)
Engine
Engine model	Displacement(L)	Power (kw)/ horsepower (PS)	Fuel
TZ400XSTPG06	0	360/489	Electricity
others
1. The agitation capacity of 6.67 cubic meters, Total length of tank (including head) 5320mm, Maximum width diameter of 2200mm, Tank installation Angle 14.3; 2. Rated power of the drive motor: 220kW; 3. Install the driving recorder with satellite positioning function; 4. Energy storage device type / monomer and assembly manufacturer: the battery is lithium iron phosphate battery ; The 5. 1 ABS model ABS-E, ; 2 ABS model CM4XL-4S / 4M; 6. The materials of the side and rear lower protective devices are: Q235 steel plate, The connection mode is all: bolted connection; Section size of rear lower protective device: 50mm 120mm, The ground height is 490mm; 7. Select the identification style and position of the front part, Optional hopper style, fender style, style, tail status without package, front grille appearance, installation position of tail logo, etc., Select the rear control panel style, electric control handle, direct drive motor style, Selected escalator style and discharge tank rotation style, Optional onboard pedal structure, Select the left and right mirror style; 8. The rear of the vehicle is equipped with operation lighting, Open only at night work, The transportation process is not open;

---
