10kv 6.3kv 6kv/0.4kv 30kVA~2500kVA 0three Phase S13-Tape Oil Immersed Distribution Transformer

Product Description

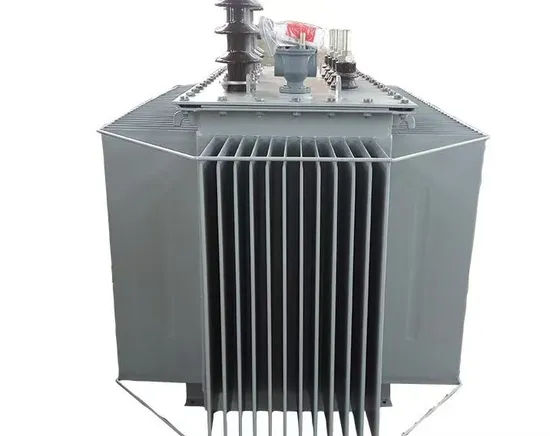

10kv 6.3kv 6kv/0.4kv 2500KVA Three Phase S13 Oil Immersed Distribution Transformer
Product Features
The type S13 is a self-developed product developed by our company based on the original S11 distribution transformer through the research and application of new materials and processes , as well as the combination of independent innovation and technology introduction , and it also combined with the optimization and innovative design of the iron core and coil structure , in order to achieve the goal of reducing no-load losses and noise . The noise level has decreased by an average of 20% compared to the current national standard JB / T10088-2016 , and the product function and quality level has reached the advanced level in China.
Technical Specifications

Form	Rated Capacity (KVA)	Connection group label number	Voltage Combination (KV)			No-load loss (W)	Dy-load loss (W)	Yy-load loss (W)	No-load current (%)	Short circuit impedance(%)
			High Pressure	Tapping Range	Low Pressure
S13-M-30	30	Yyno or Dyn11	10 6.3 6	±5% ±2×2.5%	0.4	80	630	600	1.5	4
S13-M-50	50					100	910	870	1.3
S13-M-63	63					110	1090	1040	1.2
S13-M-80	80					130	1310	1250	1.2
S13-M-100	100					150	1580	1500	1.1
S13-M-125	125					170	1890	1800	1.1
S13-M-160	160					200	2310	2200	1
S13-M-200	200					240	2730	2600	1
S13-M-250	250					290	3200	3050	0.9
S13-M-315	315					340	3830	3650	0.9
S13-M-400	400					410	4520	4300	0.8
S13-M-500	500					480	5410	5150	0.8
S13-M-630	630					570	6200		0.6	4.5
S13-M-800	800					700	7500		0.6
S13-M-1000	1000					830	10300		0.6
S13-M-1250	1250					970	12000		0.5
S13-M-1600	1600					1170	14500		0.5
S13-M-2000	2000					1550	18300		0.4	5
S13-M-2500	2500					1830	21200		0.4

Part of equipment
Testing center
Company Profile
Anhui Sanbian Intelligent Technology Co . Ltd . is a manufacturing enterprise that integrates production , development and sales of power transformers , high and low voltage switch gear , and supporting products etc . The company is located at the intersection of Ziyu Road and Tengfei Road in the Economic Development Zone of Duji District of Anhui Province . The total investment of the company is 40 million yuan With advanced technology , production and testing equipment are based on ISO9000 quality certification system , and the company adopts computer-aided design to provide customers with environment- protecting , energy-saving , low -carbon and high-quality products , and these products can basically meet the fundamental requirements of the various markets and multiple customers .
Our main products:
--Oil-immersed transformer: S13 Oil Immersed Distribution Transformer, S22 Oil Immesed Transformer, S11 Oil Immersed Transformer
--Dry-tape transformer: SG(B)13 Dry Tape Transformer, SC(B)13 Dry Tape Transformer, 35KV Dry Tape Transformer,
SC(B)14 Energy Efficiency Grade2 Dry Tape Transformer, SC(B)18 Energy Efficiency Grade2 Dry Tape Transformer,
--Amorphous alloy transformer: SH15 Amoorphous Alloy Transformer, S22 Energy Efficency Grade1 Oil Immersed Transformer
--Switch gear: KYN28A-12 Indoor AC High Voltage Metal Removable Switch Gear, KGN15-12 Alternating-Current Metal-Enclosed Switch Gear,
GCS Low Pressure Draw-Out Switch Gear, MNS Low Pressure Draw-Out Switch Gear, GGD Low Voltage Switch Gear
--Substation: ZGB Tape Combined Transformer, YB Preinstalled substation, 10KV State Grid Standard Preinstalled Substation
Certificates:
patent1 patent2 patent3
patent4 patent5 patent
FAQ
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Huaibei City, Anhui Province.
2.Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.
3.Q: What about the production?
A: In general, it take 4~6weeks and it depend on the different style.
4. Q: How can we guarantee quality?
A: Always make a final Inspection before shipping.
5.Q: Can you provide samples? A: We can provide the sample, but you need to pay the fee. And the fee is negotiable.
5.Q: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
6.Q: Can I have a catalogue and price list for my MOQ trial order? A: All of our products are made in China or displayed on the official website, you are always welcome to ask us directly for more information.

---
