US$8,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CK6130 CK6136 CK6140 CK6146
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Swing Over Bed
250mm,300mm
Swing Over Over Cross Slide
100mm,90mm
Diamerter of The Bar
41mm
Spindle Speed
150-2500rpm
Transport Package
Plywood Case
Product Description

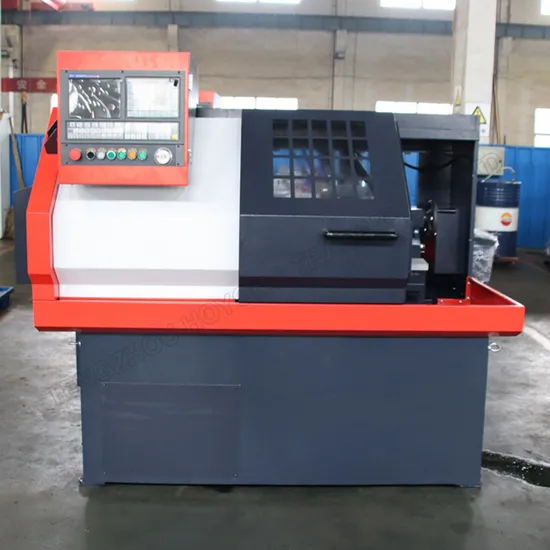

CNC LATHES FEATURES:
This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle,
fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors,
valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment
in hardware machinery industry.
STANDARD ACCESSORIES:
1.Frequency stepless speed
2.With servo system
3.4 station electric turret
SPECIFICATION
| Model | CK6125 | CK6130 |
| Max.swing over bed | 250 mm | 300 mm |
| Max. Swing over cross slide | 100 mm | 90 mm |
| Max. Processing length | Chuck 260/collet320 mm | Chuck 290/collet400 mm |
| Spindle bore | 48 mm | 48 mm |
| Max. diameter of the bar | 41 mm | 41 mm |
| Spindle nose | A2-5 | A2-5 |
| Spindle speed | 150-2500 rpm | 150-2500 rpm |
| Spindle motor power | 4 kw | 4 kw |
| X/Z axis travel | 300/350 mm | 300/380 mm |
| X/Z axis torque | Servo 4/4 kw | 4/4 kw |
| X/Z axis rapid feeding speed | 8/10 m/min | 8/10 m/min |
| X/Z axis position accuracy | 0.01/0.015 mm | 0.01/0.015 mm |
| X/Z axis repeatability | 0.012/0.013 mm | 0.012/0.013 mm |
| Tool bar section | 16*16 mm | 16*16 mm |
| Tailstock sleeve dia. | 52 mm | 52 mm |
| Tailstock sleeve travel | 90 mm | 100 mm |
| Tailstock taper | MT4# | MT4# |
| N.W. | 950 kg | 1200 kg |
| Machine dimension (L*W*H) | 1780*800*1600 mm | 1750*1200*1570 mm |
>>
