Ultrasonic Integrity Testing Instrument for Bored Piles

Product Description

Product Description

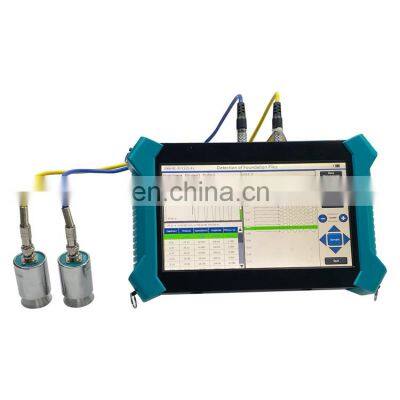

Ultrasonic Integrity Testing Instrument for Bored Piles
Usage Overview
Product Description
Specification

Product Model	U910	U920	U930
Master control unit	Buit-in A8 industrial control motherboard	Buit-in A8 industrial control motherboard	Buit-in A8 industrial control motherboard
Display	10.1 inch, high brightness, TFT color LCD capacitive screen	10.1 inch, high brightness, TFT color LCD capacitive screen	10.1 inch, high brightness, TFT color LCD capacitive screen
Operational mode	Touch screen	Touch screen	Touch screen
Storage mode	Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk	Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk	Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
Data transmission mode	Wireless Cloud Transport(Options)	Wireless Cloud Transport(Options)	Wireless Cloud Transport(Options)
Acquisition mode	Single-channel manual point-by-point acquisition	Manual point-by point collection of single and double channels	Single and double channel automatic continuous and acquisition
Number of dispossable profiles	-		Tow
Channel number	1 transmit+1 receive	1 emission+2 reception	1 emission+2 reception
Trigger mode	Signal triggering	Signal triggering	Signal triggering
Sampling period(mus)	0.05~409.6 Multistage Options	0.05~409.6 Multistage Options	0.05~409.6 Multistage Options
Acoustic time accuracy(us)	0.05	0.05	0.05
Acoustic time range(mus)	+1677700	+1677700	+1677700
Width measurement function	Measuring range: 0~10mmMeasurement accuracy: 0.01mm	Measuring range: 0~10mmMeasurement accuracy: 0.01mm	Measuring range: 0~10mmMeasurement accuracy: 0.01mm
Dynamic range(dB)	0.5	0.5	0.5
Emission voltage(V)	Sixty-five, 250, 500 and 1000 gears adjustable	Sixty-five, 250, 500 and 1000 gears adjustable	Sixty-five, 250, 500 and 1000 gears adjustable
Communication interface	UBS, Bluetooth, Wifi	UBS, Bluetooth, Wifi	UBS, Bluetooth, Wifi
Working hours(h)	More than 8	More than 8	More than 8
Power supply mode	Built-in lithium batteryExternal 220V~ 16V AC/CD	Built-in lithium batteryExternal 220V~ 16V AC/CD	Built-in lithium batteryExternal 220V~ 16V AC/CD
Working environment	Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%	Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%	Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%
Host size(mm)	30020055	30020055	30020055

Unpacking display
Our Advantages
1.New upgraded wireless cloud transmission function; 2.Five functions of measuring pile, measuring strength, measuring defect,
sounding depth and width measuring; 3.Stable performance and powerful function, it is the best choice for users with diverse needs
such as engineering inspection, teaching and scientific research; 4.Semi-transparent, high-brightness, TFT color LCD screen;
5.Full touch screen operation, simple and convenient, stable and reliable; 6.Large memory capacity and working time of more than
10 hours; 7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic
rebound; 8.U-disk transfers data and supports software upgrading through U-disk; 9.Special analysis software is powerful, data
analysis and processing, report generation, and report printing can be completed easily .
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
