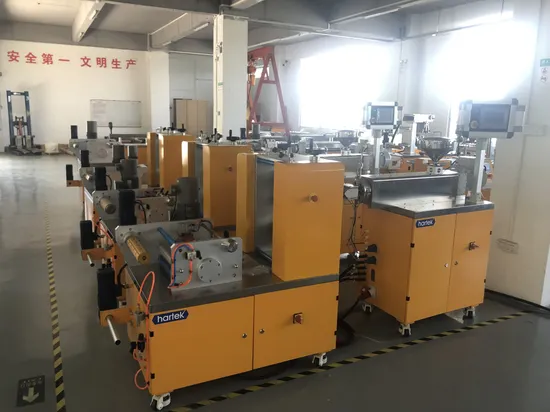

User Friendly Laboratory Sheet Extrusion Machine with Automatic Control System

Product Description

About Lab Sheet Extrusion Line
*Applicable for various general-purpose plastics, including PE, PP, PC, PET, PA, PEEK, etc.
*Film forming range: 40-200mm Can be connected with single-screw extruder or twin-screw extruder.
*Siemens motor drive.
*Hanger-type casting die for uniform material flow.
*High-precision casting rolls, with water or oil circulation for temperature control.
*Three-rolls can be placed horizontally or vertically.
*Constant tension central winding system.
*Siemens TFT touchscreen and Siemens PLC centralized control system, highly intelligent and easy to operate.
*Mechanical and electrical dual safety protection, meeting CE safety standards.
*Formula storage. Technical Parameters

Modle	HTSE-100	HTSE-150	HTSE-200
Screw DIameter	20mm	25mm	30mm
L/D Ratio	28:1(optional)	28:1(optional)	28:1(optional)
Motor Pwoer	3kw	4kw	5.5kw
Max. Speed	120rpm	120rpm	120rpm
Max. Temp.	350ºC(up to 450ºC)	350ºC(up tp 450ºC)	350ºC(up to 450ºC)
Temp. Accuracy	±1ºC	±1ºC	±1ºC
Pressure Measuring Range	0~35Mpa	0~35Mpa	0~35Mpa
Die Width	100mm	150mm	200mm
Calendaring Speed	0.5~8m/min	0.5~8m/min	0.5~8m/min
Hual-off Speed	0.5~8m/min	0.5~8m/min	0.5~8m/min
Output	0.5-3kg/h	0.5-5kg/h	0.5~7kg/h
Weight	680kg	720kg	880kg
Dimension	2800×1120×1660mm	2850×1120×1660mm	3250×1120×1660mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.

---
