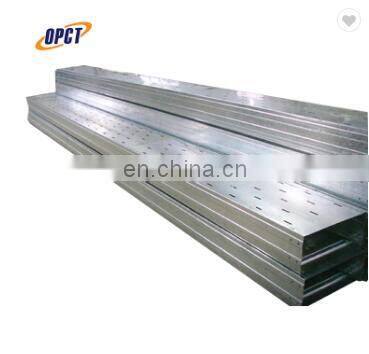

Fireproof 300x100 trough type hot-dip galvanized steel ladder cable tray

Product Description

Product Description
Fireproof 300x100 trough type hot-dip galvanized steel ladder cable tray
Product Description
Hot dipped galvanizing cable tray are immersed in molten zinc resulting in all surfaces, being completely coated. The most important advantage is the coating thickness, which provides dual protection against corrosion through an overall barrier coating and then a secondary defence of the zinc, which can protect the steel by galvanic action. HDG are recommended for prolonged outdoor exposure and will offer protection for years in most outdoor or industrial environments.

Product name	Galvanized cable tray
Material composition	Mild Steel/ Pre Galvanized Sheet/ Stainless Steel/ Aluminium/ FRP
Finish	Electroplated Galvanize/ Hot Dip Galvanize/ Enamel Paint/ Powder Coated/ Red Oxid
Trade terms	EXW, FOB, CNF, CIF
Std. Length	2500 MM
Std. Width	Perforated: 50 MM to 800 MMLadder Type: 50 MM to 1200 MM
Std. Height	25 MM to 150 MM
Std. Thickness	1.6 MM/ 2 MM/ 2.5 MM/ 3 MM
Eco-friendly	Yes
Sample provide	Yes
Sample time	1-3 days
OEM	Yes
Shipping way	By sea/land
Accessories	Horizontal/ Vertical Tee, Bend, Reducer, Elbow, Coupler Plate, Hardware,Mounting Support etc.

Product show

Types of shap

Sell various kinds of FRP cable tray according to the drawing and requirement of customers
Click for More Information!!!

Spatial layout diagram of cable tray

Features:
-- Cable Trunking are easy to install and can be mounted on walls using brackets.
-- Used for underfloor, concealed systems.
-- Cable trunking with cover sections to prevent ingress of dust and liquids.
Click for More Information!!!

Specifications

B:Width H:Height TH:Thickness
L=2000mm or 4000mm or 6000mm all can

Types	B(mm)	H(mm)	TH(mm)
	100	50	3
		100	3
	150	100	3.5
		150	3.5
	200	100	4
		150	4
		200	4
	300	100	4
		150	4.5
		200	4.5
	400	100	4.5
		150	5
		200	5.5
	500	100	5.5
		150	6
		200	6.5
	600	100	6.5
		150	7
		200	7.5
	800	100	7
		150	7.5
		200	8

Advantages

1. Low cost, significant cost savings compared to standard traditional products.
2. Light in weight, wide range of sizes.
3. Cables can be secured to clamps or ties.
4. Provides strength, rigidity without additional hardware.
5. Design allows cable exit or entry at any point.
6. Easy for line check and cleaning , easy maintained.
7. Various hardware accessories available to fix, support and install.
8. Safe smooth edge design to protect cable.
9. The satisfying price.
10.All sizes are available.
11. All sharp ends are cut off to protect cables.
12.The weight loading capacity is 28% stronger than traditional cable ladders.
Application
Installation Notice:
Bends, Risers, T Junctions, Crosses & Reducers can be made from ladder cable tray straight sections flexibly in projects.
Trays shall be supported at a maximum span of 2m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer.
Cable Tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
Click for More Information!!!
Related Products
Click for More Information!!!
Company Information
HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment,FRP tank production equipment,FRP pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling /Ladder crossgirder ),FRP pipe, FRP tank,FRP septic tank,FRP water tank,FRP grating,Cooling tower,FRP scrubber,Cable tray,FRP cover,FRP flange,FRP rock bolt,FRP handrail and so on,Looking forward to your visit and communication!
Click for More Information!!!
Packaging & Shipping
>> Packing: According to customer's demand
>> Delivery: Within 30 days after the payment was received.
FAQ
1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.
5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
Click for More Information!!!
