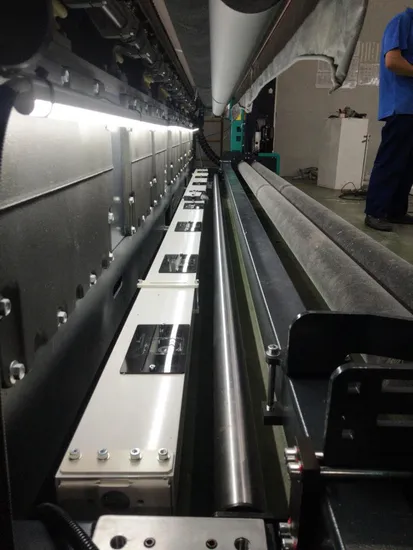

Warp Knitting Long Service Life Camera Detection Device

Product Description

This advanced image processing technology energy-saving long service life stable and reliable camera detection device is suitable for detecting various knitted gray fabric made by the warp knitting machine. It adopted the advanced image processing technology to detect complex surface defects, such as yarn break, double yarn, and other detections. When the detection appears, the machine will stop accurately.
Camera Detection Device Feature
- Intelligent on-line detection, accurate defect identification
We adopt camera visual principles and computer process technology instead of traditional human eye recognition to check the defect fabric. It has realized the automatic, accurate, rapid, and efficient function to detect the surface defect.
- Wide Application Scope
The camera detection device is suitable for warp knitting machines, flat knitting machines, spandex machines, and so on. It can detect the 20D transparency mesh fabric, short velvet, clinquant velvet, and so on. The suitable machine including Karl Mayer RSE/ KS2 (3)/ TM2 (3)/ HKS and other brand textile machinery.
- Energy-saving, long service life, stable and reliable
Camera Detection device based on digitally integrated circuit design, low power consumption (<50w), long service life; Host, intelligent camera housing and mounting bracket adopt the industrial design, it can anti-seismic, anti-fouling, dustproof and avoid mechanical collision accident, it guarantees the stability and reliability of the equipment when at work, realizing 7 * 24 hours reliable operation.
- Visual computer interface, convenient operation
Users can operate the buttons on the display screen(host) to set the system, it's simple and convenient to use.
Easy to maintenance and set to avoid the wrong operation, modular system design allows the individual camera detection device to be replaced by a problematic module in case of failure, it becomes convenient to maintain and save the maintenance cost. The unique amplitude selection function can be quickly set up individually.

YS6000 FABCAM
Using the latest detection technology, combined with artificial intelligence solution. It can be widely used in HKS, TM, biaxial machines. Adapting to common varieties on the market such as net fabrics, swimsuit fabrics, super soft and spandex super soft, etc.
Technical Specifications:
Working width	0-100cm/camera
Reaction time	<100ms
Power supply	Customized (110V/220V)
Light source	LED
Built-in LASERSTOP (4 channels for option)
Output	Relay contact output

YS5000 WARPCAM
To immediately stop warping, sizing or beaming machines in the event of thread breaks of anincorrect number of threads.
Technical Specifications:
Working width	0-60cm
Reaction time	<0.2s
Detectable titer	Over 15D
Power supply	Customized (110V/220V)
Warp speed	<1000m/min
Yarn color	White,black
Number of yarn	<1000
Output	Relay contact output

YS2000 LASER DETECTION DEVICE
Laser detection device for Warp Knitting machine stops immediately in case of yarn breakage.
Technical Specifications:
Working width	60-210 inches
Work voltage	Customized (110V/220V)
Activating Voltage	Customized (110V/221V)
Detectable titer	15D
Adjust Sensitivity	Panel
Laser Components	1~8
The fan power	750W
Output	Relay contact output

---
