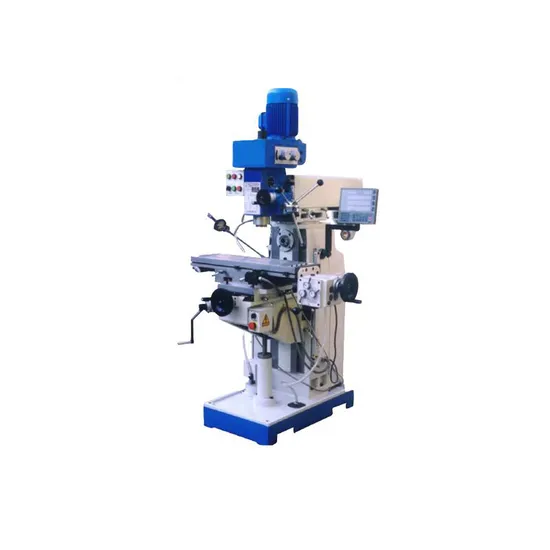

Senmo Universal Milling Machine Xz7550cw

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
XZ7550CW
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. Face Milling Width
100mm
Max. End Milling Width
25mm
Max. Tapping Capacity
M16
Table Size
800X240mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990

Product Description

Universal Milling Machine ZX7550CW

Specifications ZX7550CW
Max. drilling dia. Ø50mm
Max. face milling width 100mm
Max. end milling width 25mm
Max. tapping capacity M16
Table size 800x240mm
X-axis travel 385mm
Y-axis travel 200mm
Z-axis travel 340mm
Distance from spindle nose to table 60-390mm
Distance from spindle to column 190-740mm
Spindle taper R8 or ISO40
Spindle stroke 120mm
T-slot size 14mm
Spindle speed vertical 115-1750rpm/8steps
Spindle speed horizontal 60-1350rpm/9steps
Head tilt left and right ±45º
Vertical spindle motor 0.85/1.1KW
Horizontal spindle motor 1.5KW
N.W/G.W 850/970 kg

Standard Accessories Optional Accessories
Machine Work lamp Digital readout system
Coolant system Spindle protect guard
CE electrical cabinet Pendent control station
Drill chuck Dividing head device
Drawbar Rotary table
Chip tray Clamping kit
Manual lubrication oil pump Vice
X axis geared power feed Y axis electronic power feed

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
