75 Ohms Sat50 Coaxial Cable for Satellite TV

Product Description

SHG high quality 75 ohms CATV coaxial cable SAT50 series,low loss at high frequency for cable television,satellite television,all bare copper type, very high performance test to 3GHz, quality warranty.
Test up to 3GHz, UL, ETL, CE, RoHS, ISO9001 approved !
Features
- 100% tested ; - Low Attenuation;
- High reliability ; - Standard:EN50117 ;
- Lifetime Warranty ; - Impedance: 75+/-3 Ohms;
- CE & RoHS, ETL, UL compliant ; - Velocity of Propagation: 82%
Construction (SAT50):
Center Conductor: 1.00+/-0.01mm Solid Copper
Dielectric: 4.75+/-0.05mm Foam PE (Gas injected foam polythene, PEG)
Shield: Copper Foil, or APA (Al-polyster-Al foil)
Braid: 38% Copper or Al-Mg or CCA wires
Jacket: 6.60+0.05mm PVC
Characteristics
Sparker Test: 4000VAC Impedance: 75+/-3 Ohm
Capacitance: 54+2pF/m Velocity of Propagation: 82%
Return Loss: 20dB min (5-3000MHz)
Attenuation Sheet

Attenuation Sheet (Coaxial Cables SAT50)
Attenuation	[@68 o F. (20 o C. )]
Frequency (MHz)	Maximum (dB/100 m )
5	2.00
10	2.80
30	3.80
50	4.60
200	8.60
300	10.50
470	13.60
862	18.80
1000	20.40
1750	27.80
2150	31.10
2400	33.30
3000	37.70
Return Loss(dB)
5-470 MHz	>30
470-1000 MHz	>28
1000-2000 MHz	>26
2000-3000 MHz	>22
Screening Efficiency(dB)	>85

Other Cables
- Standard (2) Shield
- Tri (3) / Quad (4) / Super (5) shield

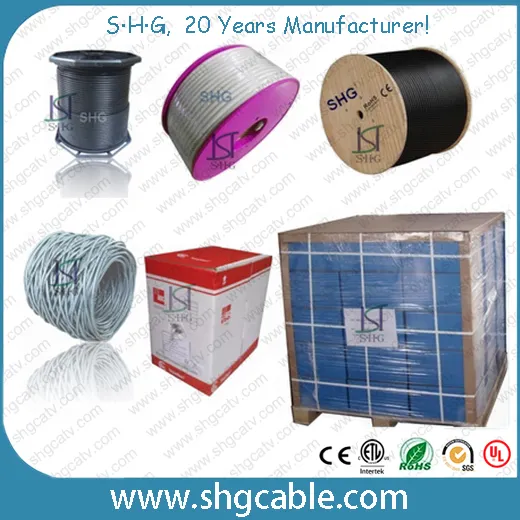

Package - any length in roll / reel / box
Why choose us - see our cable workshop
We, SHG produce the quality, we focus on quality in our over 20 years growing.
Certificates
ISO9001:2008, CE, RoHS, REACH Our Advantages Why Choose us
FAQ FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

---
