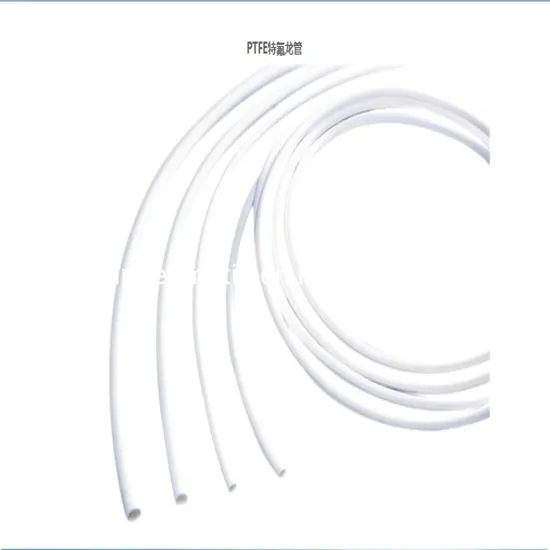

PTFE High Temperature Steam Hose Tflon Tube3/8′′*1/4′′

Product Description

Product Description--*PTFE High Temperature Steam Hose TUBE ADVANTAGE 1) 100% fresh material 2) Enough meters per roll and can mark meter on the tube as you request. 3) Print your logo above 3000 meter each size. 4) Conform to REACH, CE, ROHS certificate 5) Rich stock for every size and regular color. 6) 1 year quality assurance after shipment. 7) After sales technique support FEATURES

Technical Information	PTFE Tubing
Material	Teflon
Fluid	Air, Water, Oil, Corrosion Fuild, Steam
Burst Pressure (20 oC)	400 Psi
Working Pressure (20 oC)	0-150 Psi
Operating Temperature	-100~260 ºC
Density	2.16 g/cc
Size Tolerance	4-8mm, +/-0.10 mm
	10-16mm, +/-0.15 mm

SPECIFICATIONS

Metric Size	O.D.(mm)	I.D.(mm)		Imperial Size	O.D.(Inch)	I.D.(Inch)	Length per Roll(m)
TF0201	2	1		TF1/16	1/16''	1/32''	Upon Request
TF0320	3	2		TF1/8	1/8"	0.079"
TF0420	4	2		TF5/32	5/32"	0.093"
TF0640	6	4		TF1/4	1/4"	0.17"
TF0860	8	6		TF5/16	5/16"	0.196"
TF1080	10	8		TF3/8	3/8"	1/4"
TF1210	12	10		TF1/2	1/2"	3/8"
TF1411	14	11		TF3/4	3/4"	1/2"
TF1612	16	12

---
