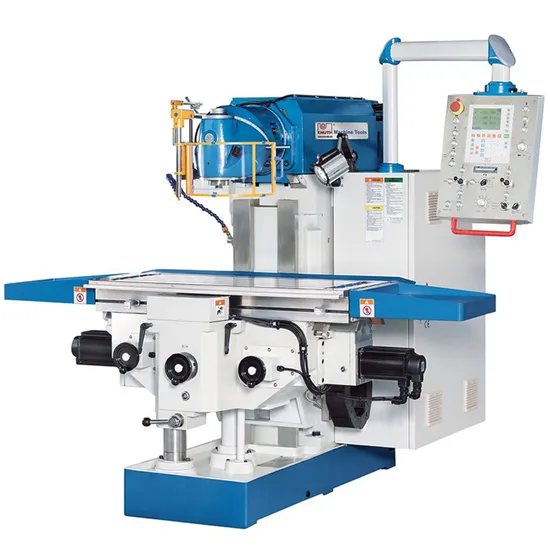

Heavy Duty RAM Universal Milling Machine with 3 Axis Servo Motor

US$19,565.00-22,467.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5746, X5750
Type
Worktable Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal Milling Machine
Table Size
500X1600mm
T-Slots
5/18/80
Swivel Angle of Milling Head
360 Degree
Spindle Taper
,ISO50
Spindle Speed Range
30-2050mm
Table Rapid Speed
2200/2200/1100
Table Travel
1200X750X500mm
Distance Spindle to Table
50-550mm
Distance Spindle to Colulmn
28-728mm
Spindle Motor
7.5kw
Max Table Load
1800kg
Transport Package
Full-Colsed Wooden Cases
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Tengzhou, Shandong, China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

Heavy duty RAM universal Milling Machine with 3 axis servo motor
feature: extra large work table and wide travel ranges on all axes swivelling control panel with integrated position indicator simplifies operation precise dovetail guides on X axis, wide square guides on Z axis preloaded ball screws with zero backlash for easy and precise feeds dynamic, infinitely variable feed and rapid feed driven by powerful, separate servo motors on every axes fine-stepped spindle gears for powerful machining universal swivel head - cutter can be moved to any spatial angle rigid, torsion-proof construction with additional guide columns for constant precision when machining heavy workpieces central lubrication and LED work lamp are standard equipment

Specifications		 Unit X5646 X5750 X5750A
Table size mm 460*1235 500*1600 500*2000
T-slots(NO./width/pitch) mm 5*18*80
Table travel (X/Y/Z) mm 900*650*450 1200*700*500 1400*700*500
Swivel angle of milling head - 360°
Spindle taper - ISO40 ISO50
Spindle speed range r.p.m (27) 30-2050
Table feed(X/Y/Z) mm/min 10-1000/10-1000/6-640 10-1000/10-1000/5-500
Table rapid speed 2200/2200/1100
Distance between spindle nose and table surface mm 32-482 25-525
Distance from spindle center line to column mm 47-697 55-755
Main motor power Kw 5.5 7.5
Feed motor Kw AC servo motor X/Y:15NM; Z: 18NM
Max load Kg 800 1800 1800
Overall size mm 1835*2362*2090 2475*2260*2180 2986*2260*2180
weight kg 4000 5000 5500

Standard ACCESSORIES
Drill chuck
mill chuck
reduction sleeve
wrench,
inner-hexagonal spanner
Camlock
Wedge shifter
Spindle arbor
Horizontal milling bilt
Operatin manual.
Optional accessories:
3-Axis SINO DRO
Universal dividing head
Rotary table TSL250
Machine vice
