Welcome to visit

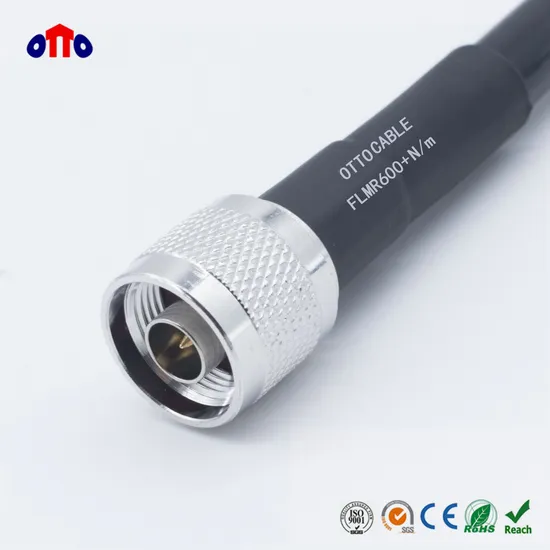

50 Ohm RF Coaxial Cable LMR600 with N / TNC Plug for Antenna

US$0.60-2.00 5,000 Meters (MOQ)

Basic Info.

Model NO.
LMR 600
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
LMR600
Brand
Otto Cable
Inner Conductor
CCA/Bc
Insulation
Foam PE
Shield
Aluminum Foil+Tinned Copper
Transport Package
As Per Request
Specification
CE, RoHS
Trademark
OTTOCABLE
Origin
China
HS Code
8544200000
Production Capacity
50km/Day

Product Description


50 Ohm RF Coaxial Cable (LMR600) for Antennas
These 50 Ohm LMR600 series coaxial cables can be equipped with varied connectors,such as SMA,N,BNC,TNC connectors.This LMR600 cable and its assemblies works very well with cellphone signal boosters, repeaters
and have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
Coaxial Cable LMR600
Construction
Item Material Diameter(mm)
Inner Conductor Bare Copper / Copper Clad Aluminum 4.47
Dielectric Foam PE 11.56
First Shield Bonded Aluminum Foil 11.71
Second Shield Tinned Copper / AL-Mg Wire Braid 12.45
Jacket PVC/PE/LSZH 14.99
Electrical Characteristics Attenuation @20ºC (dB/100M)
Impedance(Ω) 50 @220MHz 4.9
Velocity of Propagation(%) 85 @450MHz 7.1
Return Loss(dB) ≥20 @900MHz 10.3
Capacitance 78.4 @1500MHz 13.6
Shielding Effectiveness(dB) ≥90 @1800MHz 15.0
Operating Temperature(ºC) -30 to +70 @2000MHz 15.9
