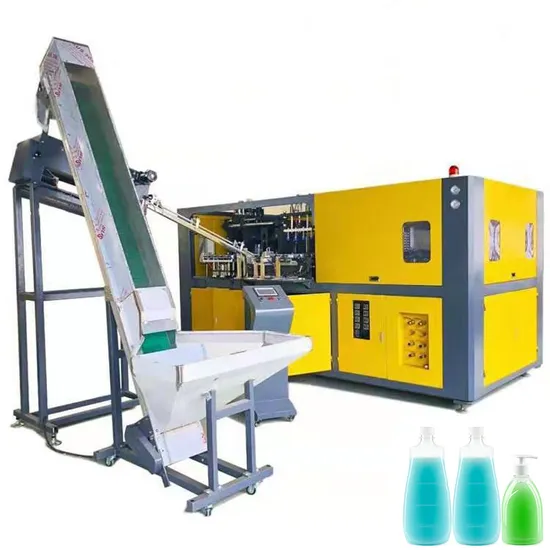

Pet Fully Automatic One out Six High-Speed High-Yield High Stability Water Bottle Plastic Blowing Machine

Product Description

Automatic 6 Cavities Blowing Machine
Application:
The machine is suitable for making 0.1L-1.5L PET water/beverage/pesticide/cosmetic bottles etc in 6 cavities.
Features:
1.Adopt advanced components such asMitsubish PLC electricparts LP solenoids/Parker HP valvesolenoids/Omronsensors/Airtac cylinders etc.
2. Adopt transfer servo motor(Mitsubish)to ensure stable performance
3. Automatic lubricating system
4. Automatic robot hand for bottle taking-out
5. Strong infrared heating lamps
6. Advanced steel mould plate clamping system
7. Accurate heating tunnel system
------Product Description------

Technical Parameter of A6
ltem	Measurement	Model
Material		PET
Theoratical output	Pcs/hr	4000BPH(500ml)
Max bottle diameter	mm	115
Max bottle height	mm	320
Bottle neck size	mm	18-38
Max opening stroke	mm	125
Bottom stroke	mm	30-70
Central distance	mm	110
Heating power	KW	60
Working pressure	Mpa	0.8-1.0
Blowing pressure	Mpa	3.0
Machine size	mm	3200*2100*2000mm
Conveyor size	mm	1700*1300*2700mm
Machine+conveyor weight	KG	2850KG+350KG
Voltage		3P 220V/380V 50-60HZ

The main steps of the bottle blowing process of the bottle blowing machine:
1) First put the heated plastic embryo into the mold;
2) Tighten the mold with a clamping cylinder;
3) Use high pressure or mechanical structure to lock the prototype;
4) Medium and high pressure pre-blowing, while stretching the cylinder to expand the billet;
5) High-pressure blowing, the preform is formed according to the mold, and the pressure is maintained for a certain period of time;
6) Release the high pressure in the forming bottle, reset the cylinder - take the bottle.
The blowing process of the bottle blowing machine main steps:
1. PET plastic bottle blowing system (semi-automatic/automatic)
2. Water treatment system to purify water (sand filter, carbon filter, RO/UF, ozone sterilizer, UV sterilizer, etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 single piece rinse-fill-capper
5. Labeling machine (PVC sleeve labeling machine/OPP hot melt adhesive labeling machine/self-adhesive labeling machine)
6. Loader load cap
7. Coding machine (inkjet printer/laser printer)
8. Terminal packaging (PE film shrink packaging machine/carton packaging machine)
------Certifications------
------Company Profile------
Taizhou Pai Rui Packaging Machinery Co., Ltd. is a leading supplier to provide the plastic machine, packaging machine and plastic products. The company was originally founded in Taizhou with convenient access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Nowadays, we have rich experience with a world-class design team, a network of high-quality manufacturers and a team dedicated to professional services.
Our products are able to support any part of the plastic producing cycle. We provide professional machines, including blowing machine, injection molding machine, and packing machine etc. The associated company's factories also supply customized plastic products with good quality and lower price. We also provide various of plastic labels as customers' requirement. Recently, the company started international business and has established a very stable and positive win-win partnership with our customers. ------Packing&Delivery------
The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack it according to customers special request. ------Our Partner------

------FAQ------
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc.
Q2: How to tell your enquiry?
A2: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
Q5: How can we get the exact price of plastic machine?
A5: - Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.

---
