Laboratory Thermoplastic Thermosetting Tablet Press

Product Description

The tablet press is mainly composed of transmission parts, turntable parts, pressure wheel frame parts, track parts, lubrication parts and enclosure, etc. The general structure of the turntable is 3 layers, the upper part of the die hole is loaded with the upper punch rod, the middle part is loaded with the middle die, and the lower part is loaded with the lower punch rod in the die hole. The power brought by the transmission parts makes the turntable rotate, while the turntable rotates, the upper and lower punch rods move up and down regularly along the fixed track.
Instrument useRaw materials are placed into a mold and are clamped between electric heating flat plates of the machine; with pressure and temperature, materials are formed into the needed shape for experiments. 1.2 Design principleA hydraulic pump driving pressure, and temperature generated by heater, shaping the specimen in the mold cavity Technical parameters:

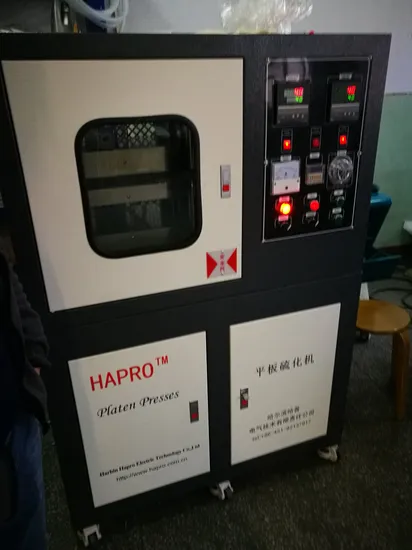

Photograph	Performance Index	Performance Parameter
	All pressure	30T(adjustable)
	Temperature	room temperature ~300ºC
	Temperature controller	LED show temperature value
	Heating method	Electric heating
	Total power	7 kW
	Power supply voltage	3 phase , 380V
	Cooling method	Nature water cooling
	Accuracy between board	±1ºC
	Accuracy temperature	≤±1.0ºC
	Dissipation heat	≤±1.5ºC
	Timer	LED 0~99(H)
	Size heating board	300×300mm
	Size cooling board	300×300mm
	Working floors	2
	Open model	auto
	Distance between board	0~90mm
	Range of hydro cylinder	Max. 250mm
	Speed of hydro cylinder	14mm/s
	Motor	5 HP
	Safety part	position in the door
	Dimension (L×W×H)	1550×1320×600mm

---
