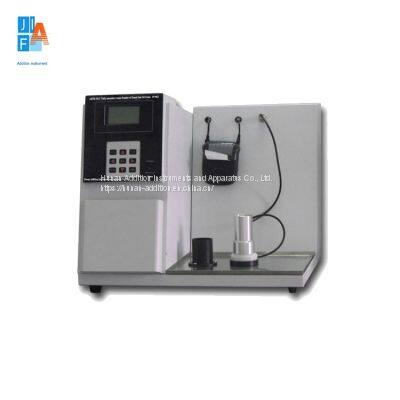

Automatic Octane Number and Cetane Number Tester
Product model: JF386Z
Product Introduction
The principle of the instrument is to measure the insulation permeability of gasoline octane number and cetane number of diesel oil and the electric charge characteristics of electromagnetic induction. The result is determined by measuring the dielectric properties of the oil and comparing it with a known data model stored in memory. The sensing device is very accurate, and can measure small changes in dielectric parameters. Thus, petroleum product parameters such as octane number and cetane number can be detected.
Technical Parameter
1. Applicable standards: ASTM D613,ASTM D2699,
ASTM D2700,ASTM D4737,ISO 5165.
2. Measurement Items: Vehicle Gasoline and Diesel
3. Operating range: temperature: -10℃~+40℃,
relative humidity: 30%~81%R.H.,
atmospheric pressure: 64~106kPa
4. Measuring range of octane number: 40-120 (ON)
5. Allowable measurement error of octane number: ±0.5
6. The floating range of the octane number measurement result: ±0.2
7. Measuring range of cetane number: 20-100 (CN)
8. Allowable measurement error of cetane number: ±1
9. The floating range of the cetane number measurement result: ±0.5CN
10. Measurement time: <20S
11. The lowest battery voltage: V2.5
12. Output mode: LCD display, print output
13. Dimensions: 56cm(H) x 74cm(W) x 36cm(D)
14. Weight: about 20kg
15. Power supply: 220V, 50Hz
Features
1. High precision
2. Automatic measurement, automatic printing
3. The instrument can detect octane number of gasoline and cetane number of petrochemical diesel oil.
4. The sensor is very accurate and can measure tiny changes in dielectric parameters
5. The results are measured by measuring the dielectric properties of the oil and comparing it with a known data model in memory
>>
