CNC Automatic Intelligent Continuous Production Line for Cutting Stone

Product Description

High Speed Intelligent Production Line Automatic loading, automatic labeling, automatic cutting, mechanical arm automatic unloading
Unmanned throughout the entire process

Product Description
Our full automatic intelligent continuous production line, which is an uninterrupted assembly line operation, can improve production efficiency, and reduce production costs. It is the first preference for achieving automation in the stone industry.

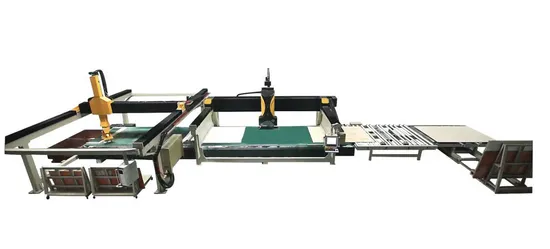

Our full automatic intelligent continuous production line places stone slabs onto the processing line through a fully automatic loader machine, and then transports them to a belt type intelligent bridge cutting machine through a conveyor table. The intelligent bridge cutting machine automatically reads the QR code ID of the stone slab, retrieves the cutting plan of the slab, and then automatically AI matching blades, automatically labels, and automatically moves the slab. The cutting is completed automatically, and then transported to the belt table for unloading.
Product Parameters

Saw blade diameter	350mm		Cutting thickness	0-60mm
Cutter rotation	0-360°		Max Cutting size	3400*2200mm
Maximum Up-Down Travel of Cutter	230mm		Water Consumption	4m³/h
Air Pressure	0.4~0.6MPA		Main motor power	11KW
Machine dimension(L*W*H)	6550x5050x2880mm		Gross weight	8500KG

High-fitting components for Intelligent Bridge Saw Machine

1	Machine frame	International standard profiles and steel
2	Screw guide rail	30 # Linear ball guide rail/ball screw (Taiwan Hiwin)
3	Drive device	Servo motor plus speed reducer
4	CNC system	Omron controller
5	Servo driver system	INVT servo system
6	vacuum system	Taiwan Airtac Pneumatic Parts
7	Water cooling system	Independent patents
8	vision system	50 million pixels (Canon, Japan)
9	Labeling system	China label machine
10	lubrication system	Electric automatic refueling pump
11	Blade diameter measurement and alignment instrument	Domestic blade aligner
12	camera	50 million pixels (Canon, Japan)
13	CNC system	Ethernet communication
14	servo drive	INVT SV series
15	Spindle motor	11KW water-cooled motor
16	inverter	11KW frequency converter (Hitachi, Japan)
17	Industrial computer	i7+WIN10/64 bit system by High configuration assembled computer
18	PLC	NX series (Omron,Japan)
19	Photoelectric sensor	PR/PSN series, etc (Omron,Japan)
20	Rotary encoder	INVT encoder comes with the servo motor
21	Stabilized power supply	DK series (China DELIXI)
22	Screen display	Industrial embedded 17 inch display (Touchwo)

Detailed Photos

---
