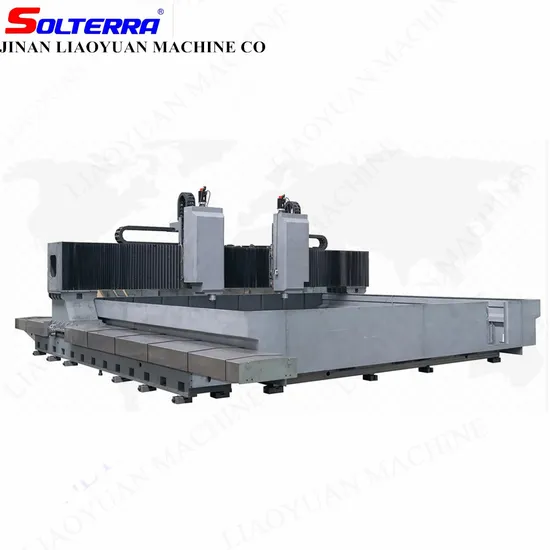

Petrochemical Industrial Boiler Heat Exchanger Tube CNC Plate Drilling Machine Flange Tube Sheet Drilling Milling Machine

Product Description

Petrochemical Industrial Boiler Heat Exchanger Tube CNC Plate Drilling Machine Flange Tube Sheet Drilling Milling Machine
MACHINE APPLICATION
1.Engineered specifically for the meticulous drilling processing of tube plates, clapboards, and flanges, this machine is an indispensable asset in the petrochemical, boiler, and wind power flange industries. It also excels in creating joint plates for construction, bridges, and iron towers, among other applications.
2. Boasting unparalleled efficiency and unwavering working accuracy, this machine is designed for ease of operation and consistent, high-performance results.
MACHINE FEATURES
1. Our machine bed boasts dual heavy-load linear roller guide pairs, ensuring unparalleled stability and precision on both sides.
2. The cross beam of the gantry is fitted with two advanced movable slides, enhancing versatility and operational efficiency.
3.Our machine comes integrated with a state-of-the-art hydraulic system, facilitating seamless hydraulic balance for the vertical ram and efficient hydraulic cutter release for the spindle.
4.Featuring the renowned FAGOR8055 CNC system from Spain, it is equipped with an RS232 interface and a modern LCD screen for user-friendly operation.
5.It incorporates a chain-plate type automatic chip conveyor and a chip collection trolley, ensuring effortless and efficient chip management.
6. We select key machinery, hydraulic pressure, and electric components from esteemed brands both domestically and internationally.

Product Parameters

Name	Description	Value
Max. work-piece size	LXW	2500x2500mm
	Max. Thickness	250mm
Vertical Drilling spindle	Max. Drilling dia.	Φ80mm
	Max.Tapping dia.	M36
	Speed	30-3000r/min
	taper	BT50
	Power of frequency motor	22kW
	Distance from end of spindle to surface of worktable	300-800mm
Gantry longitudinal movement(X axis)	Max. stroke	2500mm
	Servo motor	2x3kW
Drilling head transverse movement (Y axis)	Max. stroke	2500mm
	Servo motor	3kW
Drilling head in-feed movement (Z axis)	Stroke	500mm
	Servo motor	3kW
Chip removal system	Type	Plate-chain
	Quantity	2
	Removing speed	1m/min
Cooling system	Cooling way	Internal & External cooling
	Pressure/flux	≥6Mpa
Automatic lubrication system	Lubrication pressure	2Mpa
Electric system	CNC System	SIEMENS CNC
	No. of CNC axis	3+1
Overall size	L xW x H	≈5300x5200x3500mm

PACKAGES AND DELIVERY

LIAOYUAN CO' SERVICE

Pre-Sales Service After-Sales Service * Premium Inquiry and Consulting SupportInquiry and consulting support. * Comprehensive Training on Machine Installation
* 24/7 Multichannel Support via Phone, Email, and In-Person * Extensive Training on Machine Operation
* Exclusive Factory Tours * Ongoing Customer Engagement and Support
* Comprehensive Electrical & Mechanical Technical Assistance * Dedicated Follow-up and Uninterrupted Communication
* Efficient Parts Ordering Service * Expert Engineers Ready for Overseas Machinery Serviceoverseas.
LIAOYUAN COMPANY PROFILE

JINAN LIAOYUAN MACHINE COMPANY INFORMATION Jinan Liaoyuan Machine Co., located in the bustling city of Jinan, Shandong province, China, stands as a global leader in the realm of CNC machine tools. For over two decades, Jinan Liaoyuan has been synonymous with top-notch quality, transforming from a modest startup into a preeminent supplier in Shandong's CNC machine industry. Specializing in the research, development, and production of an extensive array of CNC machines, our product line includes CNC Angle Steel Punching Machines, CNC Angle Steel Drilling Machines, CNC Plate Drilling Cutting Machines, CNC Beam Drilling Marking Beveling Machines, CNC Band Saw Cutting Machines, and various CNC Machine Centers. Jinan Liaoyuan Machine Co. is dedicated to providing comprehensive turnkey solutions and exceptional services to meet all your production needs.
JINAN LIAOYUANCNC HISTORY * Founding Period (1991-2008)
* Continuous Growth (2008-2013)
* Innovation Expansion (2013-2017)
* JINAN LIAOYUAN MACHINE Today
The machines manufactured by JINAN LIAOYUAN are indispensable across various sectors, ranging from steel structure and angle towers to metal construction, piping, pressure vessels, shipbuilding, bridge construction, wind-energy, and heat exchanger industries. Our machines are versatile enough to cater to numerous other specialized fields, ensuring broad applicability and unmatched performance.
CUSTOMER FEEDBACK
FAQ Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not merely a trading company; we are the premier machine manufacturer. Our expertise encompasses every stage from raw material casting, machine body processing, and assembly to painting and rigorous quality inspection.
Q 2. What is the minimum quantity for order ?
A2: Typically, our minimum order quantity is one set. However, we offer attractive discounts for customers purchasing a complete set of machines.
Q3. Do you have stock product ready to deliver?
A 3. We maintain a substantial inventory of machines, ensuring prompt delivery times for our clients.
Q4. How do you deliver the finished products?
A 4. For Full Container Load (FCL) shipments, we deliver by sea.
For Less than Container Load (LCL) shipments, we offer sea and air freight options for urgent requirements.
For spare parts, we utilize premium couriers such as ***, FEDEX, DHL, UPS, EMS, and more to ensure swift delivery.

---
