All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

Product Description

Welcome to EASVIOR solar lighting manufacture
For all rang products please visit our website: esavior.en.made-in-china.com to download brochure & specification & user manual

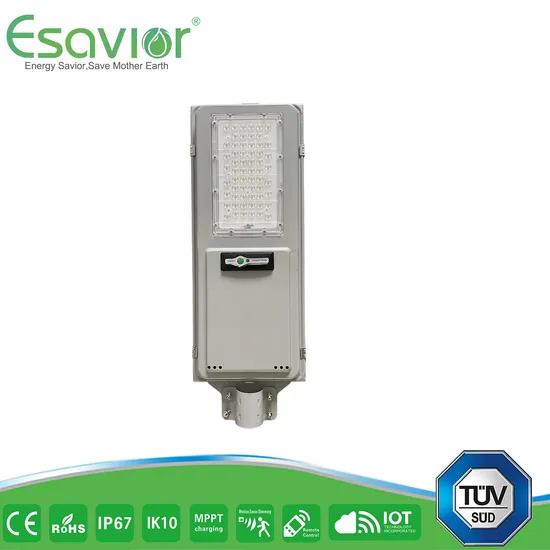

All in One /Integrated LED Solar Street Light
New Design Energy Saving All In One LED Solar Street Lights for Government Road Lighting Project with 12 Years Production Experience
FEATURES & ADVANTAGES 1,500 LM max lamp lumen high brightness 100,000+ Hours long LED lifespan, with professional heat dissipation design 25 Years long product lifespan 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies 99.9% MPPT solar charge efficiency IP68 rated controller vs. IP66 rated electrical compartment 5+ Days cloudy/rainy days autonomy IES Type 1~5 with professional optical designs available to match different project requirements Flexible & Customized Working Modes with timer and motion sensor by programming IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN APPLICATIONS Highway lighting Expressway lighting Street lighting Roadway lighting Public Areas lighting (squares, theme parks, park lots….) TECHNICAL SPECIFACTIONS

ITEMS		SPECIFICATIONS
LED Light Source	Lamp Lumen(Max)	1500LM
	Nominal Power	=150W incandescent light(15W LED)
	LED Chips	60LEDs LUXEON 2835(LED Lumen Eff.:195lm/W)
	Life-span	100,000 hours
	Viewing Angle	140° (Customized Angles & IES Types Available)
Solar Panel	Power	5V/20Wp (High Efficiency Mono PV)
	Life-span	25 years
Batteries	Capacity/Type	96WH / LiFePO4 Lithium
	Life-span	8+ years (3,000 circles @ 60% DoD)
Controller	Type	MPPT with Intelligent Power Management
	Sensor	5 sections timer (PIR & Timing as optional)
Full Charge Time	By Solar	3 hours (STC: 1000W/m2, 25ºC )
Discharge Time	Dim Mode	>60 hours
	Bright Mode	>12 hours
Working Temp.	-30ºC~+80ºC
Color Temp.	Daylight White 5000K (full color temp. range 2700~6500K available)
Mounting Height/Brackets	10~12 m/ Available Brackets: Post Top/ Arm / Pole Clamps
Space Between Lights	20~25m
Materials	aluminium alloy
Certificate	CE / ROHS / IP66/ TÜV-SUD ISO9001/ ISO14001
Warranty	2 years
Packing & Weight	Light Body Size:	750*260*80mm
	Net Weight	21.6kg (Light: 16.0kg, bracket: 5.6kg)

DISTRIBUTIONS & IES TYPE
IES Type II as regular distribution, customized IES Types available upon requirements
DIALUX SIMULATION REPORT
Street Profile(Tarmac: R3, q0: 0.070)
Pole Height :10m ; Pole Distance :35m; Road Width: 14m; Lanes: 4;
CERTIFICATES SHOW
WORKSHOP SHOW
OVERSEAS EXHIBITION
WHY ESAVIOR?
1. 12 years' experience in with global successful project reference on the Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHS/IP66 certificates.
4. More than 100 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
SOLAR STREET LIGHT FAQ:
Q1:Does the lamp light on automatically?
A:Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2:Can I order samples for solar street light?
A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).
Q4:Do you offer guarantee for the products?
A:Yes, we offer 3-5 years warranty to our products.
Q5:Can the lamp be used in strong wind environment?
A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q6:What's the difference between Motion sensor and PIR sensor?
A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.5%. Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Thank you for your attention! More details feel free to contact ESAVIOR team!

---
