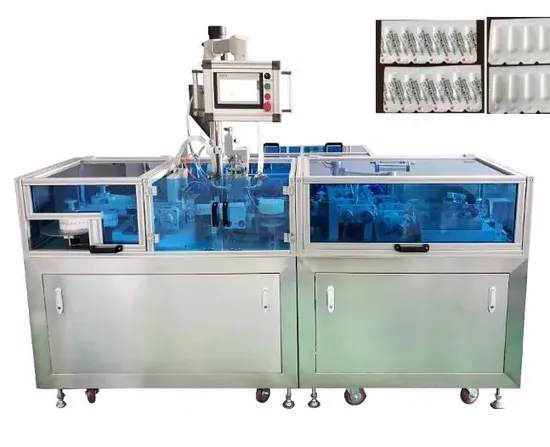

Automatic Suppositories Making Machine Mini Suppository Filling and Sealing Machine

Product Description

Automatic Equipment Electronic Suppository Making Machine Suppository Filling And Sealing Machine Product Description
suppository filling machine Working Principle: 1, Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2, Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the in a uniform state, material barrel pump into the by the high precision of filling head, filling a residual through the other end of the cycle to the raw material filling barrel again next time.
3, Cooling:
into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
Product Parameters

output	2400-3600granules/hr
single dosage	0.5-5ml
dosage allowed	<±2%
Suppository application form	Bullet-head form, duck-mouth form and other special forms
used to the host	Synthesis of glycerin fatty acids, glycerin gelatin, polyethylene glycol etc.
store the capacity of the liquid barrel	20L
working atmospheric pressure	0.6Mpa
consumption gas/minute	0.6m3
used water quantity	15kg /hr(cycle using)
the voltage of the power	The three phase AC 380V
total power	2.5KW
external dimension	3200mm×1530mm×1600mm
total weight	300kg
Packing material	PVC, PVC/PE film, thickness 0.15mm

Detailed Photos
Product Application

Packaging & Shipping

Company Profile
....................Company Information.................... SINOPED is a large-scale manufacturer, be founded in 1947, who is professional on the manufacturing & selling of machinery, and with the biggest foreign trade sales team in Liaoning province, China, all kinds of machines, includes the glass-lined tanks, centrifuges, granulators, agitators, driers, blister packing machines, filling machines, counting machine and counting lines, etc. have been exported worldwide from time to time with good reputations. ...................Manufacturing Workshop................... We have many sets half made in stock machines, if you need, we can also provide you other machines, like capping machine, labeling machine, aluminium foil sealing machine, to make them a counting line. FAQ
Q1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
Q2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
Q3. What's your payment way?
T/T by our bank account directly, or by ******'s trade assurance service, or in cash.
Q4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos.We welcome you come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
Q5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use ******'s trade assurance service or by LC.
Q6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.

---
