Poleda Universal Vertical Turret Milling Machine 2000*1800*2500mm Rocker

Product Description

Experience unparalleled precision with our 5M Vertical Metal Turret Milling Machine, the epitome of excellence in universal milling. At Dongguan Poleda Precision Machinery Co., Ltd., we continually strive for perfection, ensuring there is always room for better. Discover the outstanding capabilities of our 5M Vertical Metal Turret Milling Machine, designed to deliver superior performance.
As the leading manufacturer of universal milling machines in China, we at Dongguan Poleda Precision Machinery Co., Ltd. are dedicated to professionalism and unmatched precision.
At Dongguan Poleda Precision Machinery Co., Ltd., we believe in continuous improvement-there is always room for better.
Product Description
Product Parameters
Product Introduction

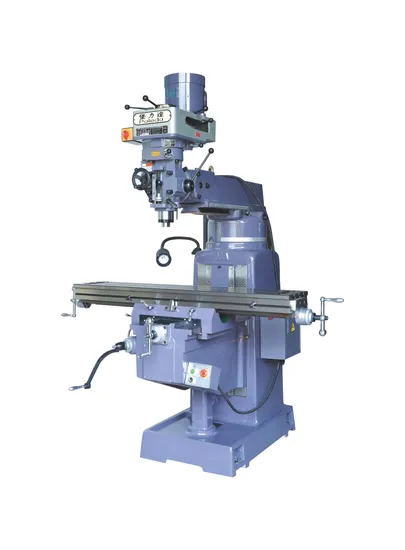

The turret milling machine, also known as the rocker arm milling machine, boasts exceptional versatility and compact design. Featuring a structure that is small in size yet high in flexibility, the milling head can rotate 90 degrees horizontally and 45 degrees vertically. Its rocker arm can extend, retract, and pivot a full 360 degrees on the horizontal plane, significantly enhancing the machine's operational range.
Build Quality
Constructed from high-grade cast iron, the body of the universal radial milling machine ensures superior precision and longevity, thanks to artificial aging treatment. The lifting platform utilizes rectangular guide rails for optimal contact and rigidity. These rails are high-frequency treated and finely ground, with the slide plastinated to guarantee excellent motion accuracy and durability. The spindle, made from chrome-molybdenum alloy, is equipped with precision angular contact bearings and undergoes tempering and fine grinding, providing robust cutting force and high precision.
Applications
As a lightweight, versatile metal cutting machine, the turret milling machine offers both vertical and horizontal milling functionalities. It is perfect for milling flat surfaces, inclined planes, grooves, and splines on medium and small parts. This machine finds extensive use in machining, mold manufacturing, instrumentation, and various other industries.
Mechanical Features of Turret Milling Machine
The casting is made of Mihanna cast iron, ensuring excellent rigidity, deformation resistance, and stability.
The main shaft, crafted from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding. Combined with precision bearings, it guarantees strong cutting force and superior accuracy.
The milling head gearbox, made of cast iron, offers impressive rigidity, minimal deformation, heavier gravity, and more precise cutting, making the milling head exceptionally durable.
The screw cap on the three-axis screw is constructed from advanced phosphorus bronze, offering exceptional wear resistance and extended service life.
The XY-axis slide undergoes high-wave heat treatment for excellent wear resistance, enhancing its service life. The interface is fitted with an imported wear-resistant plate for easy operation and longevity.
Equipped with a comprehensive lubrication system, the machine ensures uniform oil distribution across all slide points for smooth operation.
This machine is 100 kg heavier than similar products, providing added stability.
Powered by a 5hp motor, the turret milling machine features a high-rigidity and precision NT40 spindle, suitable for large parts and heavy-duty cutting.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac

---
