Instrucment Solid Core Current Transformer 200A/0.333V indoor cable-type

Product Details

Product Description

Product Description

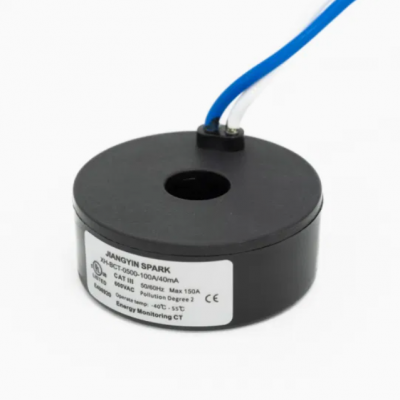

solid core current transformer
Product Description
Jiangyin Spark XH-BCT Series of Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice. Measure current from 5Amp to 600 Amp.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%
Specifications:
1. Rated input current from 5A to 600A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.RoHS Compliant
8.Operating Temperature:-40ºC to +55ºC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes;

Model	I.D.	Rated Amps	Output	Outside Diameter	Height
XH-BCT-0300	0.39 in. 0.76 cm	1A to 50	mA or 0-5V output	1.70 in. 4.32 cm	0.75 in. 1.91 cm
XH-BCT-0500	0.50 in. 1.27 cm	5A to 150A	mA or 0-5V output	1.90 in. 4.83 cm	0.75 in. 1.91 cm
XH-BCT-0750	0.75 in. 1.91 cm	10A to 250A	mA or 0-5V output	2.10 in. 5.33 cm	0.75 in. 1.91 cm
XH-BCT-1000	1.00 in. 2.54 cm	50A to 400A	mA or 0-5V output	2.40 in. 6.10 cm	0.80 in. 2.03 cm
XH-BCT-1250	1.25 in. 3.18 cm	50A to 600A	Ma or 0-5V output	2.70 in. 6.86 cm	0.80 in. 2.03 cm
