Compact Vertical Milling Machine with Adjustable Lifting Table Features

Product Description

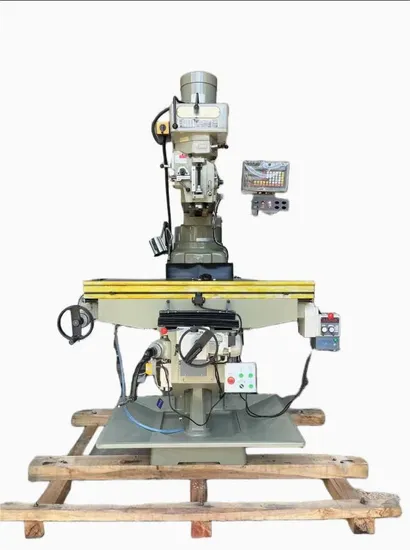

Discover the dynamic capabilities of our 5m Vertical Universal Turret Milling Machine. This robust Metal Milling Machine, enhanced with an Nt40 Spindle, is engineered for precision and power.
Product Description
Mechanical CharacteristicsCrafted from Meehanna cast iron, the casting of our machine exhibits exceptional rigidity, steadfast stability, and zero deformation, ensuring consistent performance.Our spindle, integrated with a precision bearing combination, promises formidable cutting force along with unparalleled accuracy for all your machining needs.The innovative inverted hanging design of the end milling head guarantees remarkable accuracy and user-friendly operation. The braking is seamless, and special function products are available for customization.Experience longevity and durability with our three-axis screw nuts made from advanced phosphorus meter copper, offering excellent wear resistance and a prolonged service life.After high-frequency ripening treatment, the XY shaft slide boasts impressive resistance to tail wear, significantly extending its service life.Equipped with a state-of-the-art lubrication system, our machine ensures a flawlessly smooth slide experience.
Product Parameters
1.Milling Machine Rotation Speed
Unlock enhanced processing efficiency and cutting force with our milling machine's rotation speed. Generally, an increased rotation speed augments the cutting prowess of the milling cutter, elevates surface quality, and minimizes residual stress.
Milling Machine Cutting Speed The cutting speed defines the pace and precision of processing. Whether too high or too low, it influences results. Optimal cutting speed must consider factors such as material hardness, cutter material, and machine type. Milling Machine Processing Accuracy A pivotal metric, machining precision directly impacts the quality and consistency of parts. Factors like cutting force, tool and machine rigidity, clamping accuracy, and initial machine errors play a crucial role. Milling Machine Precision Stability Precision stability is key to maintaining accuracy during operation. Factors like initial machine errors, thermal deformation, and tool wear can affect precision stability, impacting quality and consistency.

Product Name
Product Name	Milling machine
Product model	5M
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	1000MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around 45°
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1800*2500MM
	Approximate machine weight	1680kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, NT40 chuck/Z axis automatic lifting device	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
