US$1,227.00-3,787.00
|
1 set
(MOQ)
|
Basic Info.
Model NO.
DTH drilling rig
Structure
Horizontal Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001, SGS
Product Name
DTH Drilling Rig Machine
Air Consumption
0.5-0.7MPa
Air Cylinder Diameter
90mm 140mm
Drilling Rod Length
1025mm
Main Application
Blasthole
Transport Package
Fumigation Free Woodend Case Package
Specification
Weight: 320kg 470kg 480kg
Production Capacity
750sets/Month
Product Description

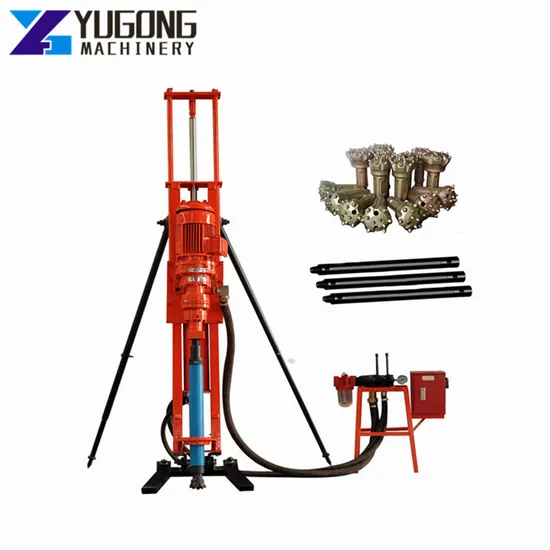

26m pneumatic dth drilling rig drill rigs manufacturer is YG
Applications
•Applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations.
•It is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.
Parameters
| Model | YGD70 YGD80
| YGD100 | YGQ100 | YGB100-4 YGB120-5.5
|
| Drilling Diameter (mm) | 50-90 90-120
| 90-130 | 90-130 | 90-130 |
| Apply Rock | ≥20 | ≥20 | ≥20 | ≥20 |
| Drilling Depth (m) | 15 | ≥25 | ≥25 | ≥30-40 |
| Drilling Rotate Speed (r/min) | 110 | 110 | 110 | 110 |
| Working Air Pressure (Mpa) | 0.5-0.7 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
| Air Consumption (m3/min) | 4 | 6 | 12 | 10 |
| Cylinder Diameter (mm) | 90 | 140 | 140 | 140 |
| Propulsion Stroke (mm) | 1070 | 1070 | 1070 | 1070 |
| Max Propelled Force (N) | 3600 8000
| 9600 | 9600 | 9600 |
| Electric Motor Power (KW) | 3 4
| 4 | - | 4 5.5
|
| Electric Motor Voltage (V) | 380
| 380 | - | 380 |
| Rated Speed (r/min) | 1440
| 1440 | 3200 | 1440 |
| Drilling Rod OD (mm) | 42
| 50-60 | 50-60 | 60 |
| Drilling Rod Length (mm) | 1025
| 1025 | 1025 | 1025 |
| Dimension (mm) | 1740*260*420
| 2280*440*550 | 2230*380*550 | 2230*380*550 |
| Weight (kg) | 280 320
| 470 | 450 | 460 480
|
Characteristics
1. Compact structure, easy operation, quick cutting speed, high efficiency, good demolition, convenient transport;
2. The energy loss does not increase with the drill rod increasing;
3. Working noise is greatly reduced;
4. Higher degree of mechanization, less auxiliary operation time, improving the drilling rig operating rate.
