High Mixing Uniformity Animal Feed Poultry Feed Mill/Animal Feed Mixer

Product Description

Product Description

Feed Mixer is a mechanical equipment that uses mechanical force and gravity to evenly mix two or more kinds of materials. It covers a small area, wide applicability, can add a variety of liquids(such as water, molasses, oil, etc.), mixing time (3-5minutes/batch), mixing uniformity is high (CV<5%).Low residue at one end. It is also suitable for mixing power materials such as premix poultry, aquatic feed and ruminant feed. In addition, the machine is widely used for mixing dry powder materials in pharmaceutical, chemical and food industries.

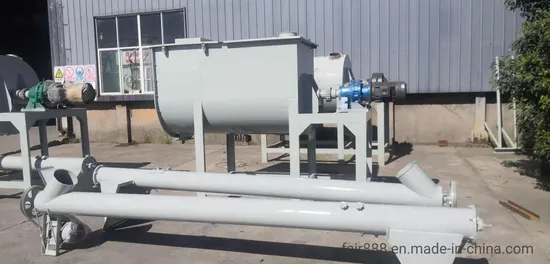

Detailed Photos

Product Parameters

Model	Capacity	Motor power	Speed	Dimensions	Weight
FMGF-200	200KG/400L	4p-4kw	25r/min	1800*800*1500mm	270KG
FMGF-300	300KG/600L	4p-5.5kw	25r/min	2000*950*1650mm	450KG
FMGF-500	500KG/1000L	6p-5.5ke	25r/min	2200*1050*1750mm	730KG
FMGF-1000	1000KG/2000L	6p-7.5kw	15r/min	2800*1150*1850mm	1350KG
FMGF-1500	1500KG/3000L	6p-11kw	15r/min	3000*1250*1950mm	1820KG
FMGF-2000	2000KG/4000L	6p-15kw	15r/min	3200*1250*2200mm	2250KG
FMGF-3000	3000KG/6000L	6p-30kw	8r/min	3600*1500*2450mm	3280KG

Our Advantages

Advantage:
1. High degree of mixing homogeneity without segregation .Chain driven, stable transmission
2. Short mixing period ,quick discharging, less residue ,good sealing effect without leakage.
3. Can be equipped with multiple atomizing nozzles to add liquid ,CV is less than 5%
4. Stainless steel mixer is available .

Features

Feature:
1.Good effect.
Dual spiral symmetry circle structure. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
2.High efficient
Mixer with double ribbon can make the material mixed with higher speed.
3.No material deposit and without dead angle when mixing.
Two ends of the body are designed to prevent the two ends from discharging.
Packaging & Shipping
Packing: Export standard wooden case or Whole contaciner
Delivery time:Withing 15-40 working days.
Shipping:By sea

Company Profile

Henan FAIR Machinery Co. Ltd Since 1997 which is located in Zhengzhou city which China's transportation hub city.
FIER are Specializing in the production machine manufacturer of mixing machine, dry mortar production line, Packing machine, sand Dryer, crushing machine,etc. single machine and production line are widely used in construction, mining, chemical industry, building materials, feed, powder mortar, metallurgy, environmental protection, and other fields.
FIER is committed to contributing to the development of The world happiness. Make global customers richer. deeply domestic and foreign customers trust and praise.
FAQ

1.What should I do if we do not know how to operate the machine when we receive it?
----we will shoot video to tell you how to operate the machine,and we are willing to solve all problems you put forward.
2.How could I get the spares on machines?
---- Non-artificial damaged spares will be sent freely and shipping free during 3 -12months' warranty.
3.How can I ensure that I get high-quality machine?
---As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.Before send the machine to you,we will test it.
4.what's the delivery time?
---7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
5.what payment way?
---T/T ,L/C , etc.

---
