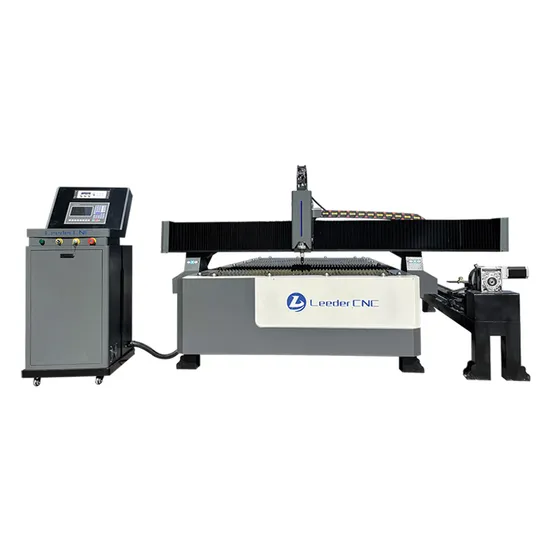

Metal Cutter 1325 1530 2030 Table Plasma CNC Cutting Machine

Product Description

Feature:
# The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.
# The gantry structure, Y axis used dual-motor dual-driven system, XYZ axis use dual-straight rail to make the machine driving smooth with high-precision.
# Top brand plasma source, nice edge cutting.
# It can apply to iron shee, aluminium sheet, galvanized sheet, steel, stainless steel plates and so on.
# Fast cutting speed, high precision, and low cost.
# The numerical control system, automatic striking arc, stable performance.
# Optional metal round pipe/square tube/drilling/marking/flame oxygen cutting and other functions, multi-functional.
Parameter:

Moldel	LEP-1530
Working area	1500x3000mm
Torch height controller	Automatic
Working table	Sawtooth
Plasma power supply	63A/120A/160A/200A/300A/400A
Control system	Starfire
Driving system	Stepper motor and driver
Transmission system	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan high accuracy square guide rail
Software	FastCAM
Cutting accuracy	±0.2mm
Traveling speed	0-30000mm/min
Working speed	0-10000mm/min based on metal thickness

Packing and delivery:
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case.
By sea/train/air, we can do EXW/FOB/CFR/CIF/DDU/DDP trading terms.
Payment:
T/T 50% in advance, and we start to manufacture this machine after receiving the payment.
T/T 50% balance payment before shipping, and we will send you our machine pictures and testing video to confirm, next, arrange the packing and shipping after all ready.
Service:
Three years warranty.
7/24 after sale service.
Customer will be able to get free training advice in our factory.
Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc.
Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.
Free parts will be provided if broken not human reason within warranty.
Engineer available to overseas service.

---
