Basic Info.
Automatic Grade
Semiautomatic
Type
General Rubber Machinery
Type of General Rubber Machinery
Material Processing Machine
Type of Tire Machinery
Rubber Regeneration Machinery
Transport Package
Wooden Case or as The Requirement
Specification
International Standard
Production Capacity
160sets / Month

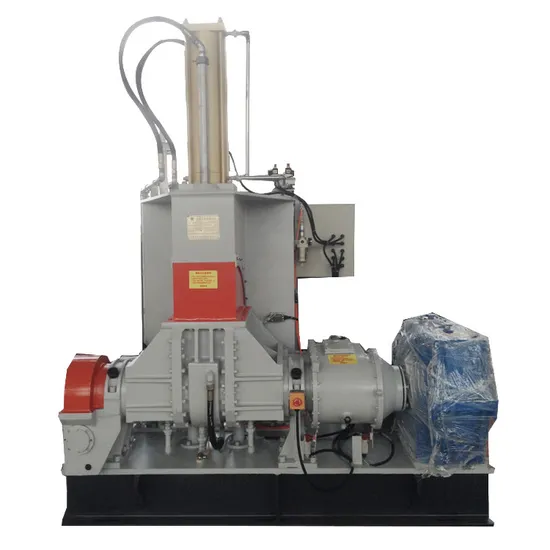

Product Description
1. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllabe temperature, which makes high production efficiency and obtains excellentstable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3. Surface where is contacted with materialsare all platedwith hard chromium and polished, which is corrosion-resistantand, wearresistant.
4. Jacket contruction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.
5. Feeding from back door on the frame (or a separate top door)is convenient for continuous pricess operation in aprodution line. The mixing chamber is able to turn forward by 140~ aroud the front rotors to discharge and is for changingpigments and cleaning the chamber.
6. Programmalble logic controller (PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and it is provided with serial interface of net.
lem \ Model | X(S)N-3X32 | X(S)N-10X32 | X(S)N-20X32 | X(S)N-35X30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | X(S)N-150X30 |
| Total Volume of kneading chamber | L | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 |
| Total Volume of mixing chamber | L | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 |
| Driving motor power | KW | 5.5 | 15 | 30 | 55 | 75 | 110 | 185 | 220 |
| Tipping motor power | KW | 0.55 | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
Tipping Angle | | 135 | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
(front/back) Rotational speed of the fotor | r/min | 0~60,32/24.5 | 30/23.5 | 30/25 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Flow rate of compressed air | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Flow rate of compressed air | m 3 /min | ≥0.3 | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥1.5 |
| (rubber mixing) Pressure of Cooling water | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
(Plastication) Pressure of heated steam | Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Overall dimensions | L | MM | 1660 | 2580 | 2630 | 3200 | 3360 | 3760 | 4075 | 4200 |
| W | 960 | 1300 | 1520 | 1900 | 1950 | 2143 | 2712 | 3200 |
| H | 1750 | 2280 | 2550 | 2945 | 3050 | 3135 | 3580 | 4000 |
Weight | kg | 2000 | 3300 | 4500 | 6500 | 7200 | 10000 | 14500 | 19500 |
>>
