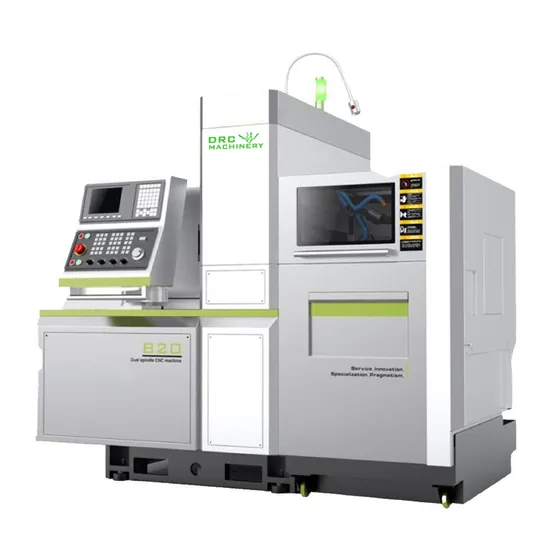

B20 Dual-Spindle Swiss Type CNC Automatic Lathe CNC Lathe with High Quality

Product Description

B20 dual-spindle Swiss Type Cnc automatic Lathe CNC lathe with high quality Swiss Type Cnc Lathe Application: It is capable of turning and milling combined processing. It is a high-precision, wide-ranging and practical processing equipment. This type of machine tool is suitable for large-scale and large-scale "slender shaft" parts with relatively large length and diameter, and "small" and "abnormal" parts. Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, military, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc. Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts.
B20 dual-spindle Swiss Type Cnc automatic Lathe CNC lathe , dual-spindle CNC Swiss Type Cnc automatic lathe is equipped with a guide bushing/no guide bushing switch function, and adopts a stepped guide rail structure to improve the rigidity of the tool holder, high output, and high function. High-precision processing capability suitable for new functions. The B20 dual-spindle CNC lathe CNC system adopts four-axis four-linkage, high stability, high precision, and easy operation. According to the needs of parts processing, the side power head can be selected to realize the automatic production of drilling and milling. The structure design is stable, the high-quality cast iron bed, and the rigidity are strong; the automatic continuous processing can be realized by configuring the automatic feeder. The main/minor axis is equipped with standard C-axis indexing and positioning. The main shaft adopts imported ultra-high precision angular contact ball bearings to ensure the high rigidity and long-lasting precision retention of the main shaft. It adopts imported high-precision screw bearings and German Rexroth high-precision guide rails.
Swiss Type Cnc Lathe Features: 1.Using the counter spindle and the back tool post, front and back processing can be performed at the same time 2.Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping. 3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces. 4.Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits. 5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle. 6.This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving. Double spindle Swiss CNC lathe The B20 dual-spindle CNC lathe CNC system adopts four-axis four-linkage, high stability, high precision, and easy operation. The side power head can be selected according to the needs of parts processing, to realize the spindle adopts ultra-high precision angular contact ball bearings, to ensure the high rigidity of the spindle and the automatic production of long-lasting drilling and milling, stable structural design, high-quality cast iron bed, and strong rigidity ; Realize automatic continuous processing by configuring an automatic feeder The main/minor axis is equipped with standard C-axis indexing and positioning. The main shaft adopts imported ultra-high precision angular contact ball bearings to ensure the high rigidity and long-lasting precision retention of the main shaft. It adopts imported high-precision screw bearings and adopts German Rexroth high precision
Specification

Power supply	Power supply rated voltage	Three-phase AC 380V
	Power supply rated frequency	50HZ
	Total input power	18kW
CNC system	BYSK	YZ150
	Small setting unit	0.001mm
	X axis pulse equivalent	0.0005mm
	Y axis pulse equivalent	0.001mm
	Z axis pulse equivalent	0.001mm
	Large programming size	±9999.999
	Cutting speed	1--4000mm/min
	X axis rapid feed rate	20000mm/min
	Y axis rapid feed rate	20000mm/min
	Z axis rapid feed rate	20000mm/min
Spindle	Large bar diameter	Φ20mm
	Spindle hole diameter	Φ21mm
	The height of the spindle center from the ground	1050mm
	Spindle speed	0-5000r/min
	Spindle motor power	7.5/4kW
Journey	X axis travel	140mm (amount of diameter)
	Y axis travel	300mm
	Z axis travel	300mm
	X axis servo motor power	1kW
	Y axis servo motor power	1kW
	Z axis servo motor power	1kW
	Slide form	Linear Guides

---
