Product Details
Product Description
Product Description
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
Specifications
| Units
| 5H
|
Table size
| mm
| 1370x305(54” x 12”)
|
T- slot number and size
| mm
| 3x16
|
Working table stroke
| X
| mm
| 810
|
Y
| 420
|
Z
| 500
|
Telescopic arm stroke
| mm
| 500
|
Spindle nose to working table distance
| mm
| 0-350
|
Taper of spindle hole
| r/min
| Standard:ISO40
|
Spindle speed
|
| Standard: 16（shift grade）50HZ:65-4500 60HZ:80-5440
|
Optional: Variable 65-3750
|
Spindle travel
| mm
| 127
|
Spindle feed rate
| mm/r
| Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)
|
Spindle motor power
| KW/HP
| 3.75/5
|
Head rotation (left - right )
| °
| 90°
|
Head rotation (front - rear)
| °
| 45°
|
Packaging size（Lx W x H）
| Single package
| mm
| 1566x1650x2080
|
Two sets of packaging
| 1720x1800x2175
|
Gross Weight
| Kg
| 1700
|

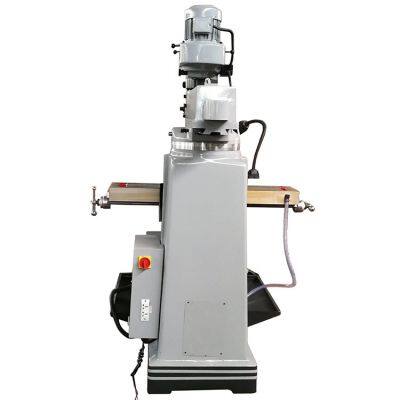

The Vertical Turret Milling Machine is a commonly used metal cutting machine with a vertical turret structure, suitable for various metal processing scenarios. The following are the main features of The Vertical Turret Milling Machine :
Multifunctionality: The Vertical Turret Milling Machine can perform vertical and horizontal milling, equipped with different specifications of milling cutters to meet various metal cutting needs.
High precision: Some models are equipped with digital display devices, which can achieve precise machining, improve machining efficiency and quality.
Stable structure: The turret structure makes the machine tool more stable during the machining process, ensuring machining accuracy and machine tool lifespan.
Wide applicability: Suitable for various metal processing industries such as molds, parts, and hardware, it is an indispensable processing equipment for factories and
>>
