Competitive Price Servo Control Vertical Column CNC Drilling Tapping Machine

US$3,250.00
1-4 Pieces
US$3,200.00
5-9 Pieces
US$3,150.00
10+ Pieces

Basic Info.

Model NO.
DSZG-20(T)
Structure
Vertical Tapping Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
1
Hole Diameter
20mm/M16
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Travel
120mm
Taper
Mt2
Spindle Speed
0-2500r/Min
Main Spindle to Working Table
510mm
Column Diameter
95mm
Motor
1.8kw/4n.M
Volume
880*610*1060mm/880*610*1880mm
Transport Package
Wooden
Specification
175kg/250kg
Trademark
CDK
Origin
China
Production Capacity
500/Month

Packaging & Delivery

Package Size
88.00cm * 61.00cm * 188.00cm
Package Gross Weight
250.000kg

Product Description

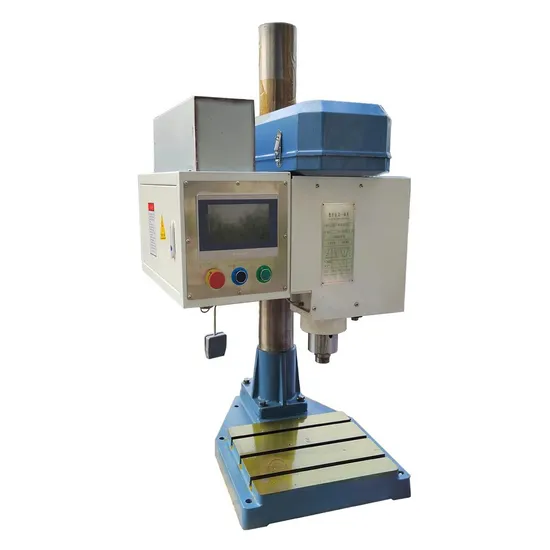

Competitive Price Servo Control Vertical Column CNC Drilling Tapping Machine
1. Designed according to CNC machining center.
2. This machine adopts double servo motor feed, one used to spindle rotation, the other to spindle feed power, and the synchronization is strong.
3. Using the drilling and tapping combination drill, the thread through hole can be processed at one time.
4. Simple operation, repeatability up to 0.02mm.
