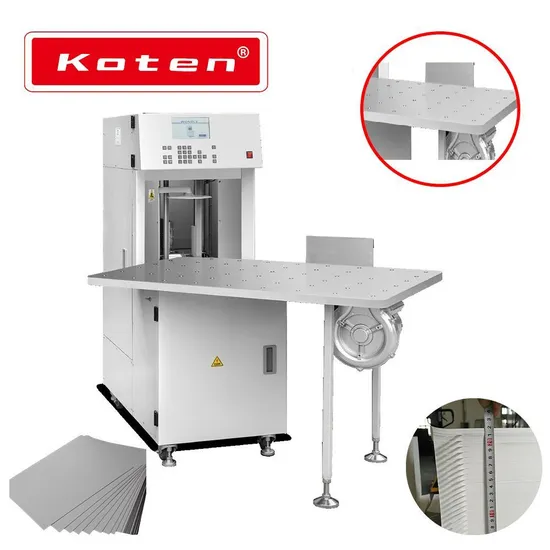

Automatic A4 Large Table Paper Counting Machine with Vacuum Table

Product Description

Automatic Big Tabel Paper Counting Machine The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. With superior performance, it has a 5.6-inch color screen computer, intuitive and simple user machine interface and adopts imported servo motor control the main motor.
Feature
1. Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
2. In addition to the standard paper counting mode, there is the random paper label insert function. It can edit and save 99 program groups, each program group can edit a different number of papers; The paper quantity detection function is for the check whether the predetermined number and actual number matches or not; The specified number counting function is for sorting out the required number of paper from the paper-pile.
3. Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
4. It has a paper label fast changing structure.
5. It has a large independent console.

Model	SZJ-DL
Paper Thickness Range	22~230gsm(Carbon paper,offset printing paper, coated paper,etc.)
Max. Paper Counting Speed	1500 sheets/min
Paper Size	Min.100*150mm, Max.700*1100mm
Paper Stacking Height	300mm(Max)
Power Supply/ Voltage	AC220±10V,50Hz
Table Size	700*1100mm
Collecting Table Height	770mm
Machine Size	1300*1700*1500mm
Machine Weight	260kg
Label For Paper In Pile	Width 6mm,Length 100m
Consumed Power	600W

Configuration	Country/Region	Brand&Properties
CPU	America	ARM Core CPU Frequency:400MHZ
SDRAM	Korea	SAMSUNG DDR2,64MB
FLASH ROM	Korea	SAMSUNG 64MB
Paper Lift Motor	China	Listepping moto China
LCD	TaiWan	Foxconn 5.6 Inch
KEYPAD	Japan	OMRON
Paper Count Motor	China	Invt
Air Pump Sensor	China	Shanghai Yunwang
IF Motor	Japan	OMRON
Hall Sensor	Japan	OMRON
Switch Power	Taiwan	Meanwell
Cable	America	TE

---
