US$30,330.00-56,500.00
|
1 set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.006mm/M
Performance Classification
High-End CNC Machine Tools
Machining
Parts Machining
Rotation Speed
8000rpm Belt Connection
Distance Between Spindle and Work Table
130-730/110-810mm
Three Axis Type
Two Axis Linear Guide Way, One Ball Way
Spindle Output Torque
52.5
Transport Package
Wooden Package
Specification
2550*2850*2800mm
Production Capacity
150 Sets
Product Description
Introduction:
The L series machine takes fast and rigid machining as the basic design starting point, which guarantees the mass production, machining accuracy and processing efficiency of the parts.The combination of high efficiency discharge, fast feed and high speed spindle function is modular to meet the customer's different processing needs of personalized choice;The key parts that affect the quality of the whole machine are imported high-quality parts
For the mold and frame industry, we introduce 850L and 1270L roller wire rail models, which can meet the requirements of precision mold and frame processing through precision assembly process.
Product Characteristics:
1. L series machine X/Y two axis guide rail are both ball linear guide rail pair, sliding guide rail pair.
2. High rigidity construction, satisfying requirement of heavy cutting under the rapid operation of the machine tool.
3. Coupling, bearing, spindle, ball screw, linear guide rail, tool magazine, play knife cylinder these key parts adopts Germany, Japan, Taiwan brand precision grade accessories to ensure its accuracy and quality.
4. Modularization of various configurations to meet customers' different personal processing requirements: coolant through spindle (CTA); spring ring spindle; 8000rpm belt type spindle, 10000-15000rpm direct connection spindle.
5. This series machining center is designed specially for part processing, accelerating the feed speed of the machine too, while taking into account the high rigid cutting requirements of the machine.
6. This series machine model is complete, from 650L-1890L, suitable for medium and small and medium-sized metal part processing requirements.
Product Details:
Specification:

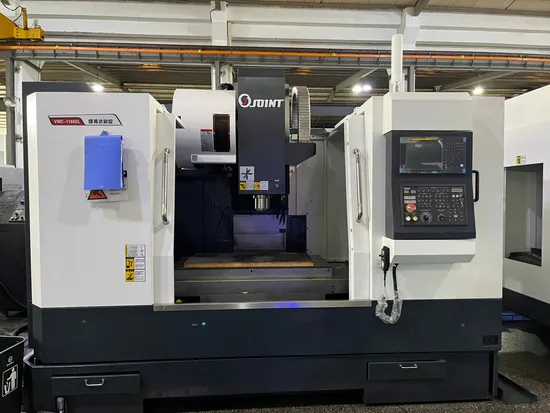

Model | VMC-1160DL |
Travel | X axis travel | mm | 1100 |
Y axis travel | mm | 600/650 |
Z axis travel | mm | 600/700 |
Distance between spindle and table | mm | 130-730/110-810 |
Distance between spindle and column | mm | 654/680 |
Table | Size | mm | 1200*680 |
Load | kg | 800 |
T slot size | mm | 5-18*100/120 |
Spindle | Taper | | BT40 |
Installment diameter | mm | Φ150 |
Rotation speed | r/min | 8000 |
Three axis | Output torque | N.M | 20/20/20(FANUC β) |
Motor rate | KW | 3/3/3(FANUC β) |
Cutting feed | m/min | 10 |
Rapid feed | m/min | 20/20/12 |
Arm type Tool magazine | Tool capacity | T | 24 |
Maximum diameter/ length/ weight of tool | mm/mm/kg | 80/200/8 |
Maximum diameter of tool (no tool) | mm | 150 |
Tool change time (T-T) | s | 2.8 |
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.008/0.008/0.008 |
Repeat positioning accuracy (X/Y/Z) | mm | 0.006/0.006/0.006 |
Other | Dimension | mm | 3200*2750*2950 |
Power capacity | KVA | 20 |
Weight | kg | 6200/6500 |
Standard accessories: 1. Mitsubishi/ Fanuc controller system with AICC2 Function 2. Fully enclosed cover 3. Pneumatic system 4. Anto lubrication system 5. Work piece coolant system 6. Heat exchange 7. Air gun 8. Water gun 9. Spindle oil coolant 10 Rear flishing 11. Hand wheel 12. RS232 Interface 13. Alarming light 14. Working light 15. Guide way cover 16. Technical documents 17. Operation manual 18. Chain type chip conveyor | Optional accessories: 1. 4 axis Rotary table 2. Coolant through spindle (CTS) 3. 24T/BT40 tool magazine 4. 5 axis |
Package:
Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
>>
