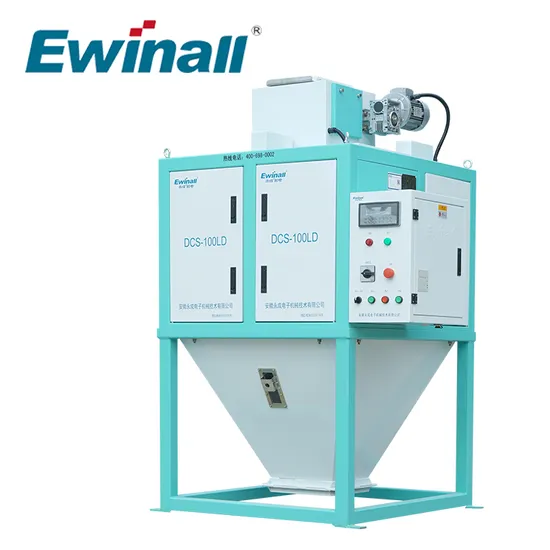

Ewinall Dcs-100ld Rice Flow Scale Machine Paddy Calculation Raw Materials Food

Product Description

Product Description
Ewinall Dcs-100ld Rice Flow Scale Machine Paddy Calculation Raw materials Food
Features
Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials in the weighing hopper. The specially designed sealed studio of the sensor completely isolates the corrosion and wear of the sensor by rice flour, dust, and water vapor, which greatly prolongs the trouble-free operation time of the equipment. The action mechanism is driven by a unique motor, which does not require a working air source. There are manual and automatic control modes, which can be manually operated to control the feeding and feeding mechanisms respectively, so as to facilitate the cleaning of agglomerated and blocked materials. After the "target value" setting is determined, the operator only needs to start the "automatic" button, and the flow scale will automatically enter the continuous "measurement and discharge" operation immediately. Friendly man-machine interface, simple and convenient equipment operation, reduce labor intensity, improve the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions. High-precision weighing sensor and quantitative controller are adopted. The controller adopts high-performance A/D converter with a conversion rate of 240 times per second and an input sensitivity of 0.5μν/d. It has high measurement accuracy and good stability. It has the functions of automatic statistics, printing and data communication of output. The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment. Technical parameters

Model	DCS-50LD2-S	DCS-100LD2-S	DCS-200LD2-S	DCS-300LD2-S	DCS-400LD2-S
Display method	Color touch screen	Color touch screen	Color touch screen	Color touch screen	Color touch screen
Division value	10g	10g	20g	20g	50g
Level of accuracy	X0.5
Measuring capacity (kg/h)	≤20000(Paddy)	≤40000(Paddy)	≤60000(Paddy)	≤80000(Paddy)	≤100000(Paddy)
Power consumption	0.9kW			1.1kW
Working environment	Relative humidity≤90%, temperature (0~40)ºC
Power requirements	AC220V±5% 50Hz;AC380V±5% 50Hz
Dimensions (mm)	1031×1130×1769	1146×1270×1911	1320×1400×2856	1520×1570×2926	1670×1944×3323

Remarks: Measuring capacity refers to the data when using paddy materials under specified conditions.
Product sample drawing
Certifications

FAQ
1. Where is your factory and when was it established?
Lu'an city, Anhui province, from 2000.
2. Which countries are your products exported to?
Indonesia, Philippines, Vietnam, Thailand, Cambodia, Myanmar, Bangladesh, India, Pakistan, Iran, Russia, United States, Mexico, Ecuador, Colombia, Peru, Bulgaria, Poland, Germany.
3. What products do you have?
We have rice packaging machines, feed packaging machines, grain packaging machines, manual packaging machines, fully automatic packaging machines, vacuum packaging machines, robot palletizing machines, and conveyor lines.
4. What materials can the machine pack?
Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Powder Wood Pellet, Barley, Oats, Maize, Rye, Safflower, Sunflower, Rapeseed, Linseed, Sorghum, Lupins, Alfalfa Seed, Navy Bean, Canary, Peanuts In Shell, Canola, Peanut Shelled, Canola Meal, Rice Long Paddy, Cement, Rice Med Paddy, Chick Laying Mash, Rice Long Brown, Chickpea, Rice Med Brown, Cotton Seed, Rye Grain, Cowpea, Flax Seed, Sawdust, Horse Pellets, Sesame, Lucerne Pellets, Lupin, Triticale, Mung, etc.
6. How do you provide after-sales service and installation?
We can provide online guidance, or our local distributor can serve you.

---
