Nonwoven Carding Textile Machine /Polypropylene Fiber Carder/Non Woven Machinery/Single Cylinder Double Doffer Carding Machine/Thermal Bonded/Non-Woven

Product Description

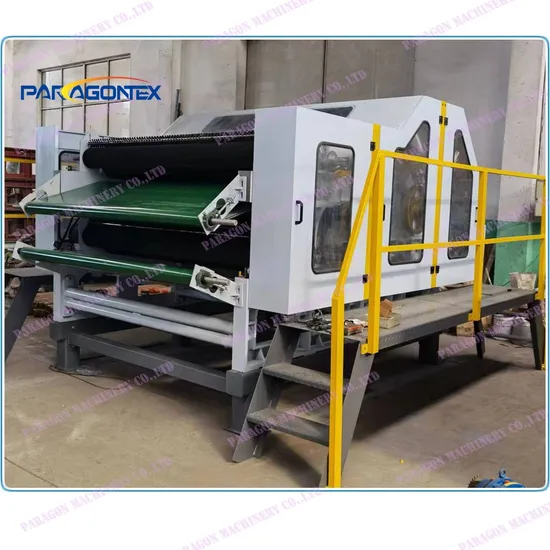

PMSL-2300 Single/Double cylinder Double Doffer Carding Machine for Thermal Bonding Nonwoven wadding
Function
This system is used for individualization of fibers to web and it is suitable for many different fiber materials ,PET,PP,PA ,4080 low melt point fiber,and so on.
Technicial Data

Machine type	Single cylinder &Double cylinder with double doffer
Capacity	150-350kg/h
Cylinder diameter	1230mm ,1500mm
Doffer	up to 45-60m/min
Working Width	2300mm,2000mm,1850mm,1550mm

Feature
1.All rollers are corrected by dynamic balance.The frame and wallboard are tempered and processed precisely.
2. Frequency control for Feeding Roller& Linker in, Cylinder2, Workers Strippers, Transport roller, Doffer 1&2,Randomizer1&2, Taking off roller
3.In addition to dust suction fan, all other motors using frequency conversion speed alone.
4.The unique feeding structure minimizes the delta area and maximizes the feeding rate.
5.The protective cover adopts transparent organic glass, which is favorable for observation in operation.
6.The bottom of the equipment is equipped with mounting bracket, which is beneficial to the installation balance and maintenance of the equipment.
7.Radial pulsation is less than 0.02mm



1.Warranty
The warranty period shall be valid for 12 months after completion of the commissioning. During the warranty period, if any defect and fault is discovered, XinLihua grants a prompt action to solve the problem.
2.Installation & maintenance
Paragon will send one or two engineers to the Buyer's factory to help the Buyer for the installation and commissioning of the production line at the request of the Buyer. The Buyer should provide the allowance , round-trip air tickets, accommodation, workers and translator. The installation and commissioning will take around 15 days to one month according to different production lines.

We are professional nonwoven machine many years, in order that we can supply the exact price and corresponding technical data, please kindly confirm your details requirement as follows:
1. What's the final products?
2. What's the width of the products?
3. What's the Gsm( grams per square meter )and thickness of products?
4. What's the material you used? And what's the specification of the raw material?
5. What's the capacity you need?
6. Do you have any pics or samples of our final products?

---
