Vertical Metal Square Column Drilling Machine Z5180 Z51100 Heavy Duty Universal Drilling Machine for Sale

US$8,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5180 Z51100
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Vertical Metal Square Column Drilling Machine Z518
Max Drilling Diameter
80
Max Feed Resistance
30000
Max. Spindle Allowable Torque
1000
Spindle Travel
250
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000

Packaging & Delivery

Package Size
145.00cm * 96.00cm * 278.00cm
Package Gross Weight
3200.000kg

Product Description

Vertical Metal Square Column Drilling Machine Z5180 Z51100 Heavy duty Universal drilling machine for sale
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:
Specifications Z5180 Z51100
Max drilling diameter 80mm 100mm
Max feed resistance 30000N 45000N
Max. spindle allowable torque 1000N.m 1150N.m
Spindle taper Morse NO.6 Morse NO.6
Distance from spindle axis to column guideway 375mm 480mm
Spindle travel 250mm 310mm
Spindle box travel 250mm 300mm
Spindle speed 40-570r/min 9 steps 26-320r/min (6)
The amount of feed(mm/rev) 0.1-0.78 6 steps 0.096-0.717r/min (6)
Working table stroke 300mm 300mm
Working table surface size 650×550mm 760×650mm
Distance from spindle nose to table surface 800mm 850mm
Main motor power 5.5kw 7.5kw
Cooling pump flow 25L/min 25L/min
Overall dimension 1452×965×2787mm 1465×970×3170mm
N/W 3200kg 3500kg

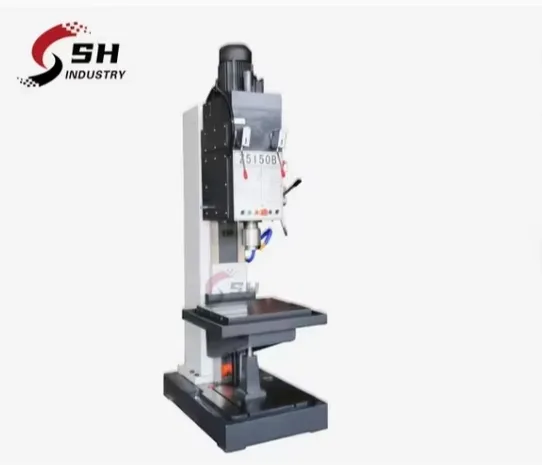

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
