HDPE Plastic Jacket Pipe Pre-Insulated Pipe Casing Extrusion Line

Product Description

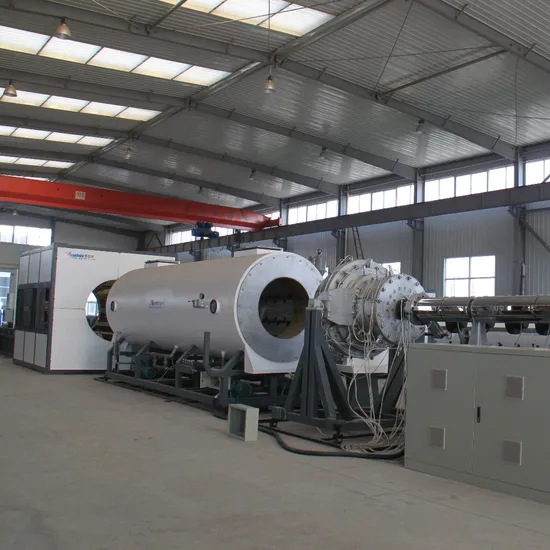

HDPE Plastic Jacket Pipe Pre-Insulated Pipe Casing Extrusion Line
Product Description
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.
Product Parameters

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	45m

Production line composition: -1set Vacuum loader -1set Hopper dryer -1set High-efficiency single screw extruder -1set Vacuum calibration table -1set Water spraying tank -1set Hauling machine -1set Cutting machine -1set Discharging Frame
Detailed Photos
PE-110/500
PE-650/1380
PE-960/1860
Our Advantages
Features of Production line of HDPE jacket pipe
-small dimension-high degree of automation, can be operated by one person, saving labor costs-a long service life.-high-efficiency extruder gives larger output, stable performance-pipe wall is average and smooth-no waste of raw material-once forming. No need trim edge.
-Supply full completed production solution: design, installation, commissioning,training -Share you 389 sets of production experience from all the world-Having 9 professional senior engineers-Having a high-end plastic machinery equipment expert workstation in China
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

Factory overview
Our team
Delivery
Exhibition
Certifications

---
