Nep 600W Solar Micro Inverter

Product Description

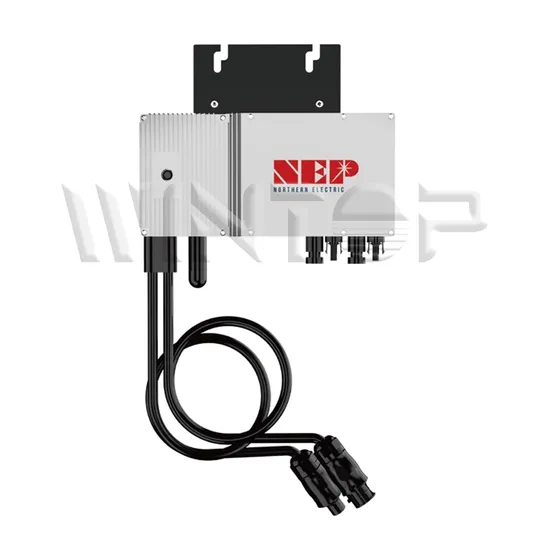

NEP 600W Solar Micro Inverter
Product Description The NEP600W micro inverter is easy to operate, and its DC overload is up to 50%. And it can be interconnected with other NEP micro inverter models with built-in PLC or WiFi.
The micro inverter is safe and reliable, integrated grounding, easy to install, and has NEMA-6/IP-66/IP-67 enclosure protection level.
Product Parameters

Input (DC)	Recommended PV Module Power Range /W	450 x 2
	MPPT Voltage Range /V	22-55
	Max. Input Voltage /V	60
	Start-up voltage (V)	24
	Max. Input Current /A	18 x 2
	Overvoltage Protection Category	II
Output (AC)	Peak Output Power /VA	600
	Max. Continous Output Power /VA	580
	Rated Output Voltage /V	230
	Nominal Output Voltage Range /V	Configurable
	Max. Continous Output Current /A	2.52
	Nominal Frequency / Range /Hz	50 / Configurable
	Power Factor (Nominal/Adjustable Range)	1.0/0.8 leading…0.8 lagging
	AC Short Circuit Fault Current Over 3 cycles /Arms	4.4
	THDi@Rated Power	<3%
	Max. Units per 20A Branch	6
	Overvoltage Protection Category	III
Efficiency	Peak Efficiency	97.1%
	MPPT Efficiency	>99.5%
	Night Power Consumption /mW	110
General Data	Operating Ambient Temperature Range /ºC	-40~65
	Relative Humidity Range	0-100%
	Dimensions (W x H x D) /MM	227 x 132 x 50
	Weight (kg)	2.9
	DC Connector Type	MC4
	AC Connection Type (inverter-inverter)	Daisy Chain AC Bus
	Communication Method	PLC or WiFi
	Protection Class	NEMA-6 / IP-66 / IP-67

Features & Benefits Convenient
1.DC overload up to 50%
2.Inter-connectable with other NEP microinverter models
3.Built-in PLC or WiFi
Safe and Reliable
1.Integrated gounding for easy installation
2.NEMA-6/IP-66/IP-67 enclosure rating
Global Certified
1.U.S. California Rule 21 Certified
2."UL 1741, SAA, TUV, VDE-AR-N 4105, VDE, 0126, G83/2, CEI 0-21, IEC 61727, EN50438, Tor Erzeuger Typ A"
Efficient
1.MPPT activated for each panel
2.High efficiency with 97.1%
Installation Instructions

Company Profile Xiamen Wintop New Energy Tech. Co. Ltd was established in 2016, it is a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting System for residential, commercial and utility scale customers.

---
