Product Details
Product Description
Product Description

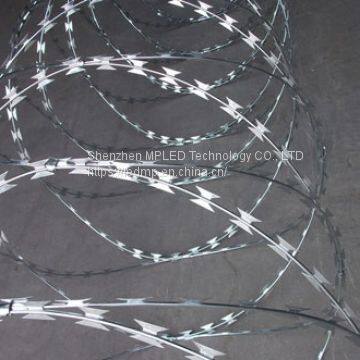

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion. Currently, Razor Barbed wire has been widel...
· FOB Price:US $ 500 - 1,200 / Ton
· Min.Order Quantity:100 Metric Ton/Metric Tons
· Supply Ability:30 Metric Ton/Metric Tons per Day
· Port:tianjin
· Payment Terms:L/C,T/T
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Razor Blade Specification
|
Reference Number
| Blade Style
| Thickness
| Wire Dia
| Barb
Length
| Barb
Width
| Barb
spacing
|
BTO-10
|
| 0.5±0.05
| 2.5±0.1
| 12±1
| 13±1
| 26±1
|
BTO-12
|
| 0.5±0.05
| 2.5±0.1
| 12±1
| 15±1
| 26±1
|
BTO-18
|
| 0.5±0.05
| 2.5±0.1
| 18±1
| 15±1
| 33±1
|
BTO-22
|
| 0.5±0.05
| 2.5±0.1
| 22±1
| 15±1
| 34±1
|
BTO-28
|
| 0.5±0.05
| 2.5±0.1
| 28±1
| 15±1
| 34±1
|
BTO-30
|
| 0.5±0.05
| 2.5±0.1
| 30±1
| 18±1
| 34±1
|
CBT-60
|
| 0.6±0.05
| 2.5±0.1
| 60±2
| 32±1
| 96±2
|
CBT-65
|
| 0.6±0.05
| 2.5±0.1
| 65±2
| 21±1
| 100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
Barbed Tape Wire Specification
|
Loop Outside Diameter
| No. of Loops
| Standard Length per Coil
| Type
| Notes
|
450mm
| 33
| 7-8M
| CBT-60.65
| Single coil
|
500mm
| 56
| 12-13M
| CBT-60.65
| Single coil
|
700mm
| 56
| 13-14M
| CBT-60.65
| Single coil
|
960mm
| 56
| 14-15M
| CBT-60.65
| Single coil
|
450mm
| 56
| 8-9m(3 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
500mm
| 56
| 9-10M (3 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
600mm
| 56
| 10-11M(3 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
600mm
| 56
| 8-10M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
700mm
| 56
| 10-12M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
800mm
| 56
| 11-13M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
900mm
| 56
| 12-14M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
960mm
| 56
| 13-15M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
980mm
| 56
| 14-16M (5 CLIPS)
| BTO-10.12.18.22.28.30
| Cross type
|
Notes: Standard products styles are shown in the tables above, special specifications are available on request. Standard materials are either galvanized or stainless steel.
In addition to these products, we also manufacture machines which produce them.
