H20series Industrial GPRS Modem, GSM Modem RS232/RS485

Product Description

Product Description H20series Industrial GPRS Modem, GSM Modem RS232/RS485
H20series GPRS GSM MODEM Designed with industrial grade, with TCP/IP stack, supports transparent data transmission, AT Command, RS232/485, remote configuration and control, with embedded Operation System, such as LINUX and WINDOWS OS, can be used as a modem for sending SMS, always online function makes data communication in real-time, etc. It has been used for data communication/acquisition, remote control and minotring, M2M appliation, etc.
Product Parameters Details
Wireless Specification
1. EGSM900/GSM1800
2. GPRS multi-slot class 10
3. Compliant to GSM phase 2/2+
4. Support SMS and data function
Hardware System
1. High-powered MCU, 100M
2. Interface:
RS232/RS485 serial port, rates: 110~230400bits/s
Indicator lights: "Power", "ACT", "Online"
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
3. Power supply:
Standard power supply: DC 12V/0.5A
Power range: DC 5~35V
4. Wireless module:
High-powered industrial GPRS module
5. Size:
Outline dimension: 102X73.5X25.5mm
6. Weight: 450 g
7. Others:
Operation temperature: -25~+65C
Storage temperature: -40~+85C
Humidity: 95% (unfreezing)
Software function
1. Design with standard TCP/IP protocol stack
2. Adopt smart online keeping technology to make sure that IP MODEM is always online
3. Support RSA and RC4 encryption arithmetic
4. Support APN
5. Support transparent data transfer and protocol conversion. Support multi work modes
6. Support dynamic domain name(DDNS) and IP access to data center
7. Support double data centers, one main and another backup
8. Support multi data centers, It can support 5 data centers at the same time.
9. Support multi online trigger ways, including SMS, audio and data. Support link Disconnection when timeout
10. Support SMS backup and emergency report
11. Support hardware and software WDT
12. Reporting the status of data transfer
13. Standard AT command interface
14. Support common MODEM function
15. Support telnet function
16. Support remote configure and control
17. Easy to upgrade firmware
18. Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc.

Cellular
4G(FDD LTE/TDD LTE)	AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)	850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz
2G(EDGE/GPRS/CDMA/EVDO)	850/900/1800/1900 MHz
Antenna Interface
Number of ports	1 or 2 (MAIN + AUX/WiFi/GPS)
SIM	1(3 V & 1.8 V)

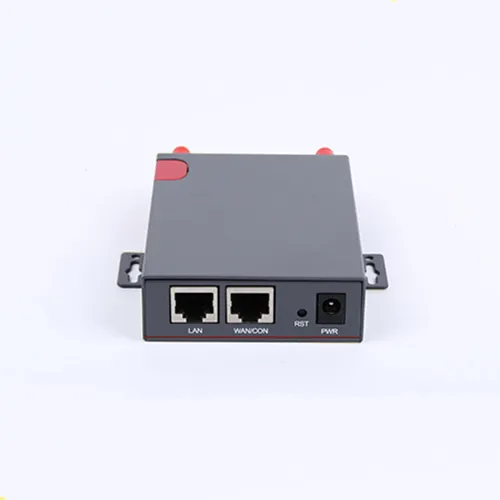

Ethernet Interface
Number of ports	2 x 10/100 Mbps, 2 LAN or 1 LAN + 1 WAN
Magnet isolation protection	1.5 KV
Serial Interface
Number of ports	1 x RS-232 or 1 x RS-485
Baud rate	300bps to 230400bps
Software
VPN tunnel	PPTP/L2TP, IPsec, GRE, OpenVPN
Firewall	DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)
Management	Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional
Serial port	Transparent, TCP Client/Server, UDP, Modbus RTU
Others
Reset button	1 x RST
LED indicators	1 x NET, 1 x LAN, 1 x WAN, 1 x WLAN
Power	5 to 32 V DC(standard 12V/1.5A)
Power consumption	Idle: 100 mA@12 V Data link: 250 mA (peak) @12 V
Housing & Weight	Metal(IP34), 450 g
Dimension	102 x 73.5 x 25.5 mm
Installation	Desktop, wall mounting and DIN rail mounting
Certification	CE, RoHs, FCC
