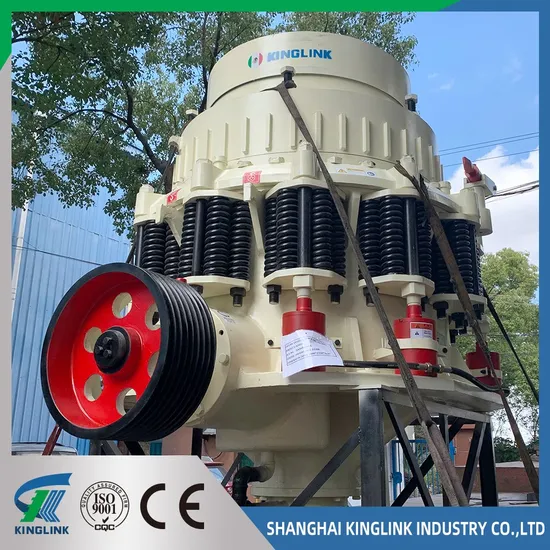

Iron Copper Ore/Granite/Gravel/Basalt/River Stone Rock Spring Stationary Symons Hydraulic Cone Crusher 4.25 Feet for Quarry, Mining and Building Aggregates

Product Description

Introduction & Application
KL series symons type stone cone crusher is developed with national patent based on international technology and innovation. It can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone.
Advantages & Characteristics
New special design, simple and reasonable structure, smooth and stable running and low operation cost.
Cone frame is cast steel structure; High pressure points are reinforced by hard steel
Each side of drive-shaft is equipped with roller bearings. Bearing base uses seal ring to prevent lubricating oil leakage.
Hydraulic adjustment devices make it convenient to adjust discharge opening size.
Hydraulic release system consists of several hydraulic cylinders. Easy to release jammed materials.
"Spring type" over-load protection. This release system allows un-crushable materials to pass through without causing damage.
A complete lubricating oil circle system, including oil pump, oil reserve tank, oil pipeline, etc. If oil temperature is over high or oil flows slowly, the machine can be shut down automatically. This protection extends crusher's service life.
Technical Parameters

Model	Max Feed Size (MM)	Min Discharge opening (mm)	Main Motor Power (kw)	Close Discharge Size(mm) Capacity(TPH)
				6	10	13	16	19	22	25	38	51	64
KLC1000	160	13	90-110			70	90	125	135	160	215
KLM1000	115	10	90-110		55	65	70	90	120	135
KLF1000	80	8	90-110	47	50	60	67	90
KLC1160	180	13	110-132			105	120	135	160	180	220
KLM1160	130	10	110-132		72	92	105	135	150	170
KLF1160	90	10	110-132		70	90	100	125
KLC1300	200	16	132-160				135	160	180	200	290	350
KLM1300	150	13	132-160			105	125	135	160	180
KLF1300	102	10	132-160		80	105	135	140
KLC1380	215	19	185-220					180	200	230	310	400
KLM1380	160	16	185-220				130	160	180	200
KLF1380	115	13	185-220			135	170	190	210
KLC1500	235	22	185-220					210	245	290	380	480	530
KLM1500	175	19	185-220					195	234	250	295
KLF1500	130	13	185-220			170	190	220	230	250
KLC1650	267	22	250-300						300	350	475	600	660
KLM1650	203	16	250-300				210	250	280	300
KLF1650	140	13	250-300		170	205	240	310

Note: All the above information is subject to our final confirmation.
.

---
