NBR/ FKM / Vmq/ EPDM / Acm / Industrial Oil Seals Custom Oil Seal Manufacturer

Product Description

Product details:

Item name:	Oil Seal
Meterial:	NBR, FKM, HNBR , Silicon ,Q, EPDM,ACM, etc
Application:	Engine, Transmission, Rear Axle
Speed:	Speed Mechanical Seal
lip:	Double lips and single lip are available
Shape:	O Type
Color:	Black, brown or as you required
Pressure:	Pressure type
Working Medium:	Hydraulic Oil, Water and Dust
Payment terms:	L/C or T/T or Western Union
Trademark:	ODM, OEM
Performance:	High temperature resistance,Good oil resistance
Standard:	Nonstandard / Standard
Hardness:	20-95
Transport package:	Carton or as Your Required
Factory visit:	Available
Company Type	Manufacturer/Factory & Trading Company
Origin:	China(mainland)
Hscode:	4016931000
Supply	500000 per/month

Brief Introduction

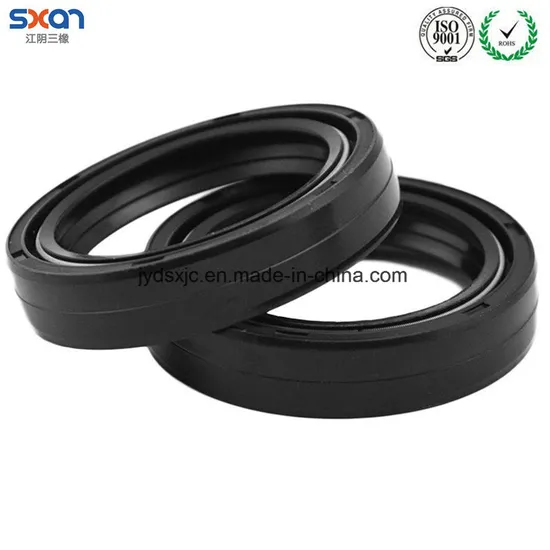

Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals. An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal Case, and the Spring. It is a widely used sealing component.
Temperature: -120°C -280°C Depending On Rubber Material
Pressure: Up to 0.03 MPa
Reciprocation Speed: 0-20m/S
Medias: mineral oils, water, lubricating grease
Specification: 6-13000mm
Hardness: 20-95
Rubber materials:Silicone , We have various colors/specifications/shapes for choosing.
Oil seal specifications:

8*16*5.8	35*45*10	60*80*10	180*220*16	12*20*5.8	15*30*7
10*18*5.8	35*47*7	60*90*12	180*220*18	35*62*10	60*85*10
10*22*8	38*58*8	65*80*10	200*230*15	64*80*8	15*26*7
10*26*5	35*50*8	65*85*8	280*320*20	221.5*250*8	15*30*7

Silicone Regular Size:

ID*OD*H	Type	ID*OD*H	Type	ID*OD*H	Type	ID*OD*H	Type
6x22x8	TC	12x32x10	TC	17x30x8	TC	20x40x8	TC
8x14x4	SC	12x32x7	TC	17x30x10	TC	20x42x7	TC
8x16x4	TC	13x22x7	TC	17x30x10	TC	20x42x7	TC
8x16x5	TC	13x24x7	SC	17x35x10	TC	20x42x10	TC
8x16x7	SC	14x24x7	SC	17x35x10	SC	20x45x10	TC
8x19x7	TC	14x24x8	TC	17x35x5	TC	20x45x10	TC
8x20x7	TC	14x25x7	TC	17x35x7	TC	20x45x10	SC
8x22x7	SC	14x28x4	TC	17x35x8	TC	20x47x7	TC
8x22x8	SC	14x28x7	TC	17x40x7	TC	20x47x8	TC
8x22x8	TC	14x28x7	TC	17x40x10	TC	20x47x10	SC
9x22x7	TC	14x28x10	TC	17x40x12	TC	20x47x10	TC
10x19x5	TC	14x29x7	TC	18x28x5	TC	20x50x10	TC
10x19x6	TC	14x30x7	TC	18x30x6	TC	20x52x7	TC
10x19x7	TC	14x30x10	TC	18x30x7	TC	20x52x3	SC
10x20x8	TC	14x35x7	TC	18x30x8	TC	20x52x6	SC
10x22x10	TC	14x35x10	SC	18x30x10	SC	21x35x6	TC
10x22x10	TC	15x24x5	TC	18x30x10	TC	21x35x7	TC
10x22x7	SC	15x24x7	TC	18x35x10	SC	21x35x8	TC
10x22x8	SC	15x25x5	TC	18x35x10	TC	21x38x6	TC
10x22x8	TC	15x26x7	TC	18x35x7	TC	22x30x10	SC
10x25x5	SC	15x28x5	SC	18x40x7	TC	22x32x5	SC
10x25x10	SC	15x28x7	TC	18x40x10	TC	22x32x7	TC
10x26x4	TC	15x28x7	SC	20x30x5	SC	22x35x6	TC
10x26x7	TC	15x28x10	SC	20x30x5	TC	22x35x7	TC
10x26x7	SC	15x30x5	SC	20x30x6	TC	22x35x6.7	TC
10x26x8	TC	15x30x5	TC	20x30x7	SC	22x35x8	TC
10x28x7	TC	15x30x10	TC	20x30x7	SC	22x38x8	TC
10x28x10	TC	15x30x10	SC	20x30x7	TC	22x38x10	SC
11x19x5	TC	15x32x7	TC	20x30x8	TC	22x38x10	TC
12x19x3	SC	15x35x6	TC	20x30x9	TC	22x40x6	TC
12x20x6	SC	15x35x10	TC	20x30x10	SC	22x40x7	TC
12x22x5	TC	15x35x7	TC	20x32x7	TC	22x40x8	TC
12x22x6	TC	15x40x10	SC	20x32x7	TC	22x40x8	TC
12x22x7	TC	16x28x7	TC	20x35x10	TC	22x40x9	TC
12x22x7	SC	16x30x7	TC	20x35x10	TC	22x40x10	SC
12x24x7	SC	16x30x7.5	TC	20x35x5	TC	22x40x10	TC
12x24x7	TC	16x30x10	TC	20x35x7	TC	22x42x7	TC
12x25x5	SC	16x35x7	TC	20x35x7	TC	22x42x10	SC
12x25x7	TC	16x35x10	TC	20x35x8	SC	22x42x11	TC
12x25x10	TC	16x35x10	TC	20x37x7	TC	22x42x12	SC
12x28x7	TC	17x28x5	SC	20x37x7	TC	22x45x10	TC
12x28x8	TC	17x28x7	TC	20x40x10	TC	22x45x10	SC
12x28x10	TC	17x28x7	SC	20x40x7	TC	22x50x10	TC
12x30x10	TC	17x30x7	TC	20x40x7	SC	22x65x8	TC

Related Products:
Testing Equipments
1,Hardness testing: hardness testing of various materials to ensure product hardness to meet customer requirements.
2,Tensile machine: according to the material property requirements test tensile force, according to the standard through the test.
3,Microscopic examination: sampling rate of 20%, oil seal surface is fine cracks, there is scrap, no pass; if the sampling failure rate of 3% and above, the whole batch of full inspection, to ensure quality.
4,Aging box: aging of the material, the temperature of 200 degrees and above, aging phenomenon, then scrapped.
5,Vulcanizing apparatus: test the quality of the glue material, the value is within the standard range, and then pass the test according to the standard.
Certification
We have passed ROHS , ISO9001:2008 quality system certification.

Packing&Shipping:
Size	Official size
Packing	A roll of 10, a bundle of 100, and finally put into the packing box
About the packing details for sizes, also according to your requirements.
Delivery Time:	5-7 days after payment
Payment Terms:	100%TT advance payment for LC order
Normally, the goods will be shipping by Sea, by air or by air express according to customer's request.

Our Service
As a professional manufacturer of rubber sealing products for 34 years, we offer various kinds oil seals, such as TC, TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, and DB, also can customized based on your specific demand; Material including NBR, SILICONE, VITON,HNBR, CR, PTFE, EPDM, etc for your better choice.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 3-7 days for standard sealing products; and 15-20 days for big order and custom non-standard products.
Q: Do you provide free samples?
A: Yes, we offer free sample while customer need pay for the freight charge.
Q: Which Payment way is workable?
A: Irrevocable L/C, Cash, PayPal, Credit card and T/T money transfers.
B: 30% T/T deposit in advance, 70% balance before shipment after presentation of ready cargo.
C: L/C ( Irrevocable LC at sight: Order amount over USD10,000)
Q: What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q: How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your needs while keeping material costs in mind.
Q: Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q: Can you supply different color materials?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FKM, NEOPRENE(CR), NR, IIR, SBR, ACM, etc .

---
