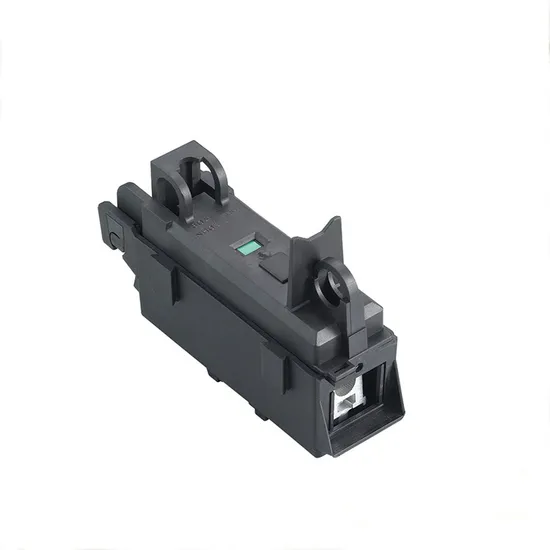

Apdm 160A Insulated 4 Pole Mounted Fuse Switch Disconnector

Product Description

APDM 160-Single phase switch for NH type fuses up to 160A General Description The APDM 160 fuse switch it is used either as anoperation or protection device for LV lines .It is designed to be used with NH00 size fuses offering a maximum of 160Amps of line protection without blades .In case blades are used, the maximum switching load would be 250A. It is manufactured in reinforced fiberglass polyamide and fulfills all the neccessary requirements for outdoor installation and operation.In the APDM 160A model the connection is mad ewith connectors and can also be connected with terminals lugs and both models can be installed with single phase or three phase opening.

Technical Data
Item No	APDM-160
Voltage	500 V
Insulation Level	1000 V
Freqency	50/60 HZ
Operacional current with fuses	160A
with blades	250A
Installation Category	AC 22B
Short time current (1s)	3.2KA
Dinamic current (crest)	25KA
Interruption capacity	100KA
Weigth	0.6KG
Protection degree	IP23

The switch fuse 160 APDM has the following features included : Internal Connection Operation Light the fuse Installed fuse indicator Connection seal Sealable Safety Inserts for mounting bipolar,tripolar,tetrapolar etc. Eyelets suitable for proper and safe opening and closing operation,assembly and disassembly of the fuse cover
Company Profile Zhejiang Smico Electric Power Equipment Co.,Ltd. Located in Liushi Town,Yueqing City,the China Electrical City. Have conveniently
traffic 25km respectively from Wenzhou airport and railway station,and 5km from 104 national road freeway.
We specialized in manufacturing Aerial electrical fittings,Cable and wire terminal,Power
connectors,Insulator,Arrester,Switch.Since we founded,we insisted to carry on the strategy to provide the top quality
products,competitive price,perfect after-sale service,prompt new products developing to satisfy customers' demand. Therefore,our
products have gained a strong reputation throughout the Europe,Noth American,South American,Middle East and Southeast Asia,etc.
As we strive to hold on our promise of "Human Oriented,Technology Advanced",we make hard effort to increase our global market
presence. We strictly produce the goods accordance with the ISO9001,and most of for our products have the CE and CB certificate.
We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together.We
are always your electrical friends.

---
